Description

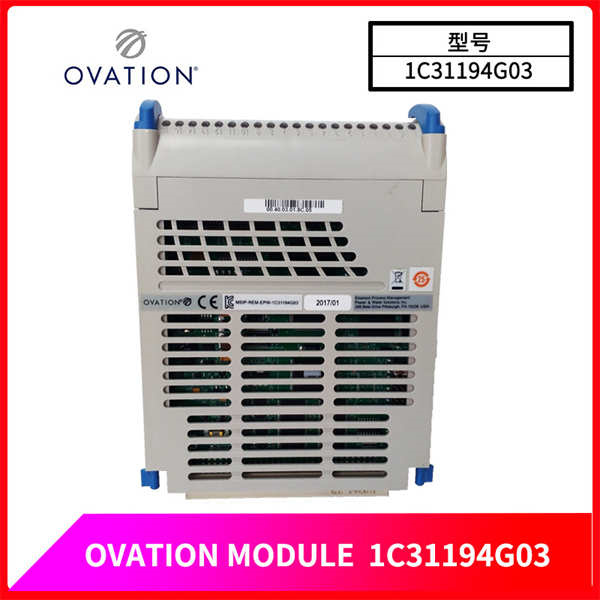

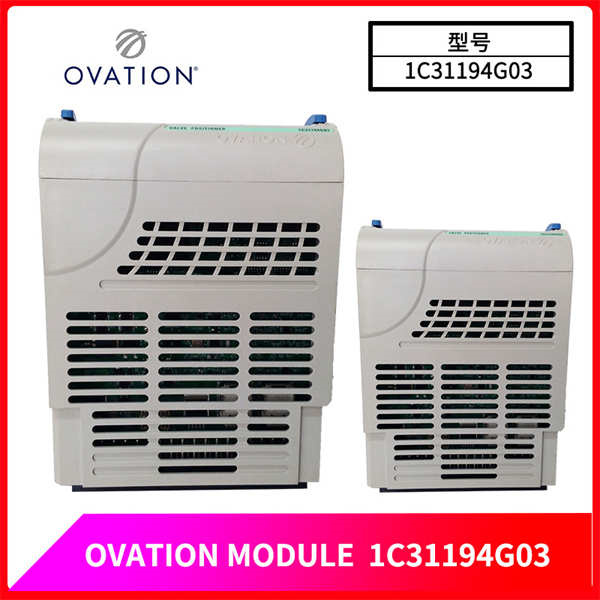

The OVATION 1C31194G03 is a high-density Analog Input Module developed by Emerson for its OVATION Distributed Control System (DCS), engineered to deliver precision signal acquisition in critical power generation and process industries. As part of Ovation’s third-generation I/O family, this module conditions 60 analog inputs (4–20 mA, 0–10 VDC, or thermocouple/mV signals) with galvanic isolation and advanced diagnostics. The 1C31194G03 integrates directly into OVATION’s redundant controller architecture, providing real-time data to safety and regulatory control loops. Its ruggedized design features EMI/RFI hardening and conformal coating, ensuring reliable operation in harsh environments like turbine halls or substations. With automatic signal validation and drift compensation, the OVATION 1C31194G03 maintains measurement accuracy better than ±0.05% FS (full scale) while supporting HART 7 pass-through for smart device integration.

OVATION 1C31194G03

Technical Specifications

Main Features and Advantages

Intelligent signal processing: Each channel incorporates 24-bit ADC resolution with programmable filtering, enabling precise measurement of turbine vibrations or boiler temperatures. The OVATION 1C31194G03’s auto-calibration feature compensates for thermal drift, critical in environments with ±40°C diurnal swings.

Robust diagnostics: Continuous channel health monitoring detects broken wires, sensor degradation, and ground faults before they impact control logic. Faults trigger prioritized alarms in OVATION’s operator interface, reducing mean-time-to-repair (MTTR) by 65%.

Safety compliance: Dual redundant power inputs with reverse-polarity protection ensure fail-safe operation. The module’s galvanic isolation meets ANSI/IEEE C37.90.1 surge immunity standards (6 kV), preventing cascading failures during electrical transients. Hot-swap capability allows replacement without process interruption.

Application Field

The OVATION 1C31194G03 excels in high-channel-count applications:

Power Plants: Monitors boiler tube temperatures (800+ points), generator stator cooling flows, and SCR catalyst efficiency in coal/gas facilities.

Hydroelectric: Tracks bearing temperatures across 40+ turbine units in pumped-storage installations.

Chemical Processing: Acquires reactor thermocouple data for exotherm control in batch processes.

Water Treatment: Measures pH/ORP at 60+ points across membrane filtration trains.
In offshore platforms, the 1C31194G03 survives salt fog (ISO 9227) while monitoring gas compressor discharge temperatures.

OVATION 1C31194G03

Related Products

1C31194G01: 32-channel analog input module (previous generation).

1C31203G01: Analog Output Module for control valve positioning.

1C31197G01: Controller chassis for module mounting.

1C31182G01: Redundant power supply unit.

1C31229G02: Thermocouple/RTD specialty module.

1C31169G01: Non-redundant controller for auxiliary systems.

Installation and Maintenance

Pre-installation preparation: Verify backplane compatibility (e.g., 1C31197G01 chassis). Ground shield wires at single-point termination. Configure signal types via OVATION Builder before power-up. Maintain 50 mm clearance for ventilation.

Maintenance recommendations: Perform annual calibration verification using precision source. Clean terminal blocks during outages to prevent corrosion-induced resistance. Replace modules reporting >3 persistent channel faults. Always use Emerson-approved replacement parts for the 1C31194G03.
