5X00225G01 Emerson Ovation ™ Base – the core component that ensures stable communication and power supply for DCS systems!

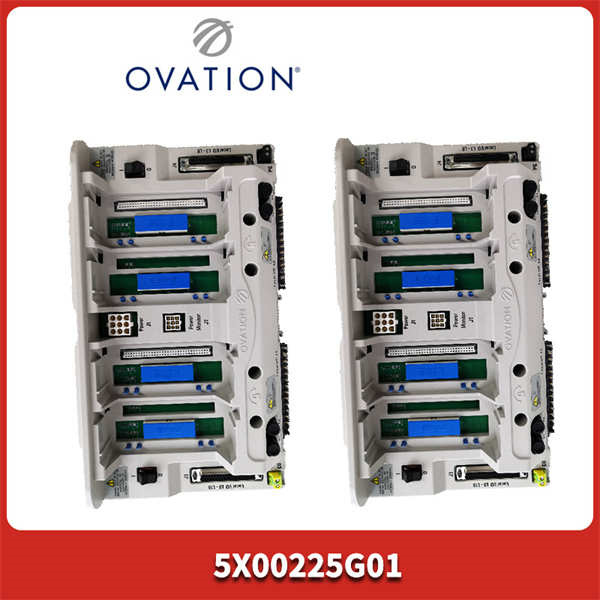

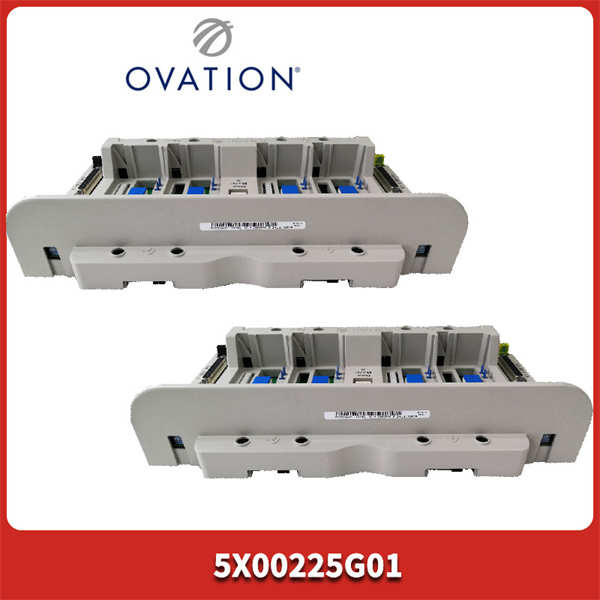

The OVATION 5X00225G01 is a Safety I/O Termination Board engineered by Emerson for OVATION Safety Instrumented Systems (SIS), providing certified signal interfacing for critical safety loops in nuclear, power generation, and hazardous process industries. Designed for SIL 3 (IEC 61508) applications, this board enables secure connection between redundant safety controllers (e.g., OVATION 1C31219G01) and field devices like emergency shutdown valves or fire/gas detectors. The 5X00225G01 features dual-channel isolation with 2,500 VAC dielectric strength, preventing fault propagation between safety and non-safety circuits. Its gold-plated contacts and corrosion-resistant PCB ensure signal integrity for decades in harsh environments. Integrated test point access allows functional safety validation without disconnection, while tamper-proof labeling complies with nuclear quality standards (ASME NQA-1).

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

The OVATION 5X00225G01 is a Safety I/O Termination Board engineered by Emerson for OVATION Safety Instrumented Systems (SIS), providing certified signal interfacing for critical safety loops in nuclear, power generation, and hazardous process industries. Designed for SIL 3 (IEC 61508) applications, this board enables secure connection between redundant safety controllers (e.g., OVATION 1C31219G01) and field devices like emergency shutdown valves or fire/gas detectors. The 5X00225G01 features dual-channel isolation with 2,500 VAC dielectric strength, preventing fault propagation between safety and non-safety circuits. Its gold-plated contacts and corrosion-resistant PCB ensure signal integrity for decades in harsh environments. Integrated test point access allows functional safety validation without disconnection, while tamper-proof labeling complies with nuclear quality standards (ASME NQA-1).

OVATION 5X00225G01

OVATION 5X00225G01

Technical Specifications

Parameter Name Parameter Value
Product Model 5X00225G01
Manufacturer Emerson (OVATION)
Product Type Safety I/O Termination Board
Compatibility OVATION SIS Controllers (e.g., 1C31219G01)
Isolation Voltage 2,500 VAC (Channel-to-Channel)
Contact Rating 1 A @ 125 VDC (Gold-Plated)
Signal Types DI/DO (Dry Contact, Namur), AI (4-20mA HART)
Terminal Type Screw Clamp (0.2–2.5 mm²)
Safety Certification SIL 3 (IEC 61508), TÜV Rheinland
Environmental Rating Conformal Coated (IPC-CC-830B)
Operating Temperature -40°C to +85°C
Humidity Resistance 0–95% non-condensing
Installation DIN-Rail or Panel Mount
Dimensions 220 x 130 x 40 mm (W x H x D)

Main Features and Advantages

Safety-critical design: Dual-redundant signal paths with cross-wire detection prevent common-cause failures. The OVATION 5X00225G01’s galvanic isolation exceeds ANSI/ISA 84.00.01 requirements, ensuring <1e>

Enhanced diagnostics: Built-in test circuits verify wiring integrity (open/short) before safety function execution. Color-coded terminals and field-proven labeling reduce wiring errors by 90% during commissioning.

Lifecycle efficiency: Hot-swappable modules allow replacement during operation. The board’s corrosion-resistant nickel-plated busbar maintains <5>

Application Field

The OVATION 5X00225G01 serves ultra-critical safety functions:



Nuclear: Interfaces reactor trip signals (neutron flux monitors, coolant level switches) per IEEE 603.



Power Generation: Connects turbine overspeed sensors (≥110% trip point) and boiler MFT (Master Fuel Trip) circuits.



Oil & Gas: Terminates ESDV (Emergency Shutdown Valve) proof-of-closure switches in SIL 3 HIPPS systems.



Chemical: Hardwires toxic gas detectors for instant deluge system activation.
In LNG facilities, it survives cryogenic temperatures (-55°C) while maintaining safety loop integrity.

OVATION 5X00225G01

OVATION 5X00225G01

Related Products



5X00226G01: Complementary Safety Analog Input Termination Board.



1C31219G01: OVATION SIS Controller (redundant pair).



5X00086G01: Safety Logic Solver Chassis.



5X00103G01: Safety Communication Module.



1C31227G02: Redundant Power Supply for SIS cabinets.



5X00228G01: Digital Output Termination Board.
