The SST SST-5136-DNP-PCI is a high-reliability DNP3 (Distributed Network Protocol) communication interface card developed by Schweitzer Engineering Laboratories (SEL) for utility and industrial SCADA systems. Designed as a PCI-bus solution, this module enables legacy control systems to communicate with intelligent electronic devices (IEDs) such as protective relays, RTUs, and meters using DNP3 Level 3/4 over serial connections. The SST-5136-DNP-PCI supports both DNP3 Master and Outstation roles, providing time-synchronized data acquisition, event reporting, and secure command execution. With dual isolated RS-232/485 ports and surge protection (±15 kV ESD), it ensures robust performance in electrically harsh environments like substations or water treatment plants. Its driver compatibility with Windows® and Linux® systems simplifies integration into existing automation infrastructures.

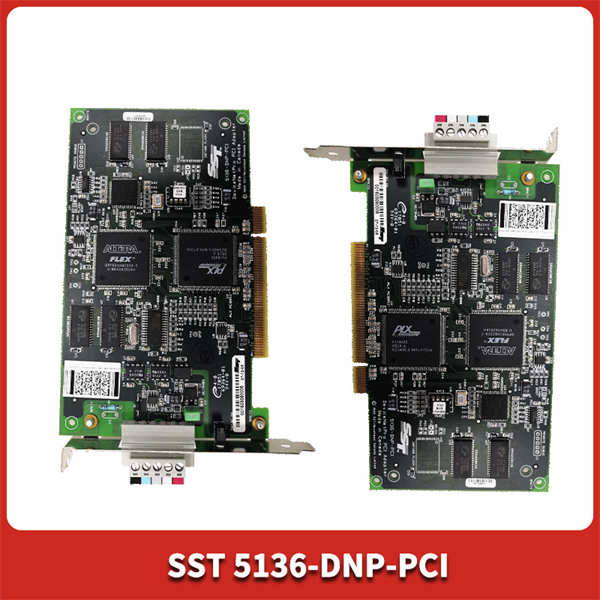

SST SST-5136-DNP-PCI
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | SST-5136-DNP-PCI |
| Manufacturer | SST (Schweitzer Engineering Laboratories) |
| Product Type | DNP3 Communication Interface Card |
| Host Interface | PCI 2.3 (32-bit, 5V/3.3V) |
| Protocol Support | DNP3 Level 3/4 (IEEE 1815-2012) |
| Ports | 2x Isolated RS-232/485 (Software-Selectable) |
| Baud Rate | 300–115.2 kbps |
| Isolation Voltage | 2,500 VAC (Port-to-Host) |
| Surge Protection | ±15 kV ESD (ANSI/IEEE C37.90) |
| Operating Systems | Windows 7/10/11, Linux 2.6+ |
| DNP Functions | Unsolicited Responses, Time Sync, File Transfer |
| Certifications | UL 508, IEEE 1613, CE |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 175 x 107 mm (L x W) |
Main Features and Advantages
Protocol precision: Full support for DNP3 Secure Authentication (v5) prevents unauthorized command execution. Dual-port architecture allows simultaneous master/outstation operation or redundant communication paths. Time-stamped event reporting (<1>
Robust connectivity: Automatic baud-rate detection and software-configurable RS-232/485 modes eliminate hardware jumpers. Galvanic isolation protects host systems from ground loops in substation environments. Built-in data loggers buffer 50,000+ events during communication outages.
Engineering efficiency: Precompiled drivers and SEL’s AcSELerator QuickSet software enable configuration in under 15 minutes. Legacy system compatibility avoids costly control hardware upgrades.
Application Field
The SST SST-5136-DNP-PCI bridges critical infrastructure:
Electric Utilities: SCADA integration for substation relays (SEL-351, SEL-421) and feeder monitoring.
Water/Wastewater: Controls pump station RTUs and reservoir level sensors.
Renewables: Interfaces wind farm controllers with plant DCS.
Oil & Gas: Monitors pipeline cathodic protection rectifiers.
In transportation, it tunnels traffic signal data through legacy control centers.
SST SST-5136-DNP-PCI
Related Products
SST-5136-DNP-PCIE: PCI Express version with enhanced bandwidth.
SST-5136-DNP-USB: External USB-to-DNP3 converter.
SEL-2032: Ethernet DNP3 communication processor.
SEL-2440: DNP3 protocol analyzer for troubleshooting.
SST-3006-SER: Multiport serial card for SCADA servers.
