SST-PFB-CLX – integrated into RSLogix 5000 to simplify configuration and make your control system as stable as Mount Tai!

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

The SST SST-PFB-CLX is a high-performance PROFIBUS DP Master communication module engineered by Schweitzer Engineering Laboratories (SEL) for Rockwell Automation ControlLogix systems. Designed for mission-critical industrial automation, this module enables seamless integration between ControlLogix PLCs and PROFIBUS DP-V1/V2 slave devices (drives, I/O, sensors) across demanding environments like power substations, mining, and oil & gas facilities. Operating as an independent coprocessor within the ControlLogix chassis, the SST-PFB-CLX offloads protocol translation from the main CPU, ensuring deterministic data exchange with cycle times ≤1 ms. Its ruggedized design features dual-port isolation (2,500 VAC), ±15 kV surge protection, and an extended operating temperature range (-40°C to +85°C), making it ideal for electrically noisy or harsh installations.

SST SST-PFB-CLX

SST SST-PFB-CLX

Technical Specifications

Parameter Name Parameter Value
Product Model SST-PFB-CLX
Manufacturer SST (Schweitzer Engineering Laboratories)
Product Type PROFIBUS DP Master Module
Compatible Processors ControlLogix L6x/L7x
PROFIBUS Standards DP-V1/V2 (IEC 61158)
Data Transfer Rate 9.6 kbps – 12 Mbps (auto-negotiating)
Max I/O Data 244 bytes Input/Output per slave
Slave Devices Up to 124
Ports 2x Isolated RS-485 (9-pin D-Sub)
Isolation Voltage 2,500 VAC (port-to-backplane)
Bus Termination Software-configurable
Operating Temperature -40°C to +85°C
Certifications IEEE 1613, UL 508, CE, ATEX Zone 2
Backplane Current 800 mA @ 5V DC
Diagnostics Web server, LED status, telegram logging
Shock/Vibration 5g @ 5–150 Hz (IEC 60068-2-6)

Main Features and Advantages

Deterministic performance: FPGA-based processing achieves ≤1 ms cycle times for synchronized motion control. Dual ports support redundant ring topologies or segmented networks, minimizing cabling costs.

Substation-grade robustness: Conformal coating (IPC-CC-830B) protects against humidity, dust, and corrosive gases. Surge immunity meets ANSI/IEEE C37.90.1 (±4 kV), critical for high-voltage environments.

Engineering efficiency: Automatic GSD file import via SEL’s AcSELerator Architect software. SIL 2 capable for safety applications. Preconfigured Add-On Profiles (AOP) for Studio 5000 reduce commissioning time by 50%.

Application Field

The SST SST-PFB-CLX bridges ControlLogix with PROFIBUS networks in:



Power Substations: Controls breaker position monitoring and capacitor bank switches.



Mining: Synchronizes conveyor drives (e.g., Siemens SIMOCODE) in dust-heavy environments.



Oil & Gas: Interfaces SIL 2-rated pressure transmitters in offshore safety systems.



Water Treatment: Integrates pump VFDs with PlantPAx SCADA.

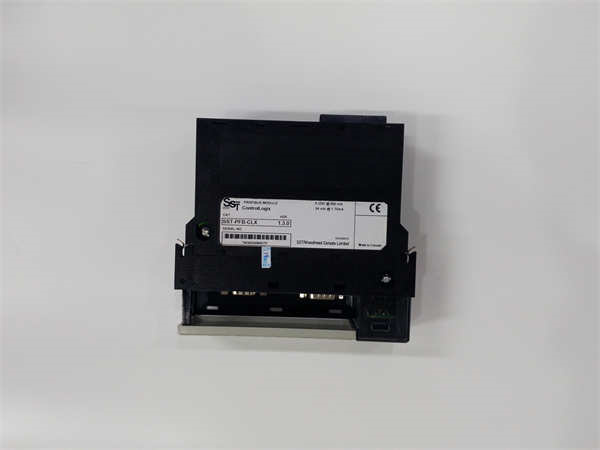

SST SST-PFB-CLX

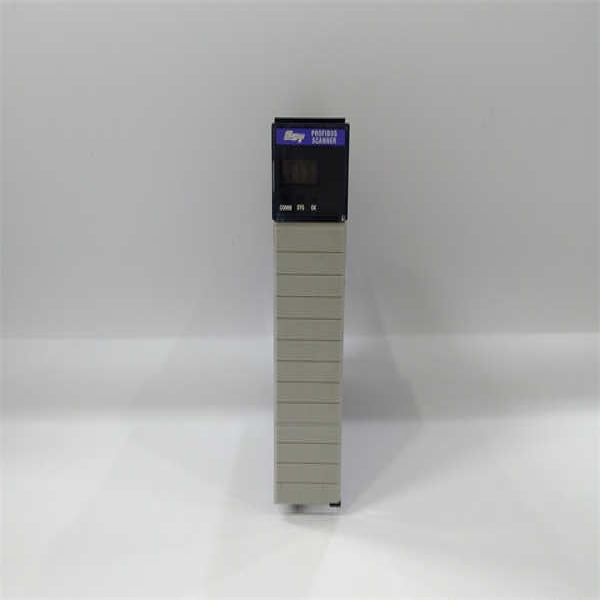

SST SST-PFB-CLX
