Description

The Honeywell ICS Triplex T8451 is a high-density Analog Input Module engineered for Honeywell’s Trusted® Triple Modular Redundant (TMR) safety platform, achieving SIL 3 certification (IEC 61508/61511) for critical 4–20 mA signal acquisition. Designed to interface with industrial transmitters (pressure, flow, level), this module provides 16 fully isolated channels with continuous cross-validation of three independent measurement circuits per point. The ICS Triplex T8451 delivers ±0.05% accuracy and features automatic drift compensation, ensuring long-term stability in safety instrumented functions (SIF) like overfill prevention or compressor surge control. Integrated HART® 7.0 protocol support enables real-time device diagnostics and calibration without compromising safety loops.

Operating within the Trusted TMR architecture, the T8451 processes inputs for controllers like the T8110B with deterministic sub-15ms response times. Its patented “per-channel TMR” design isolates faults at the individual signal level—preventing single-channel failures from affecting adjacent inputs. With 1500 VAC channel-to-channel isolation and a -40°C to +70°C operating range, the ICS Triplex T8451 excels in electrically noisy, high-vibration environments like offshore drilling rigs or turbine control panels, where signal integrity directly impacts personnel and asset safety.

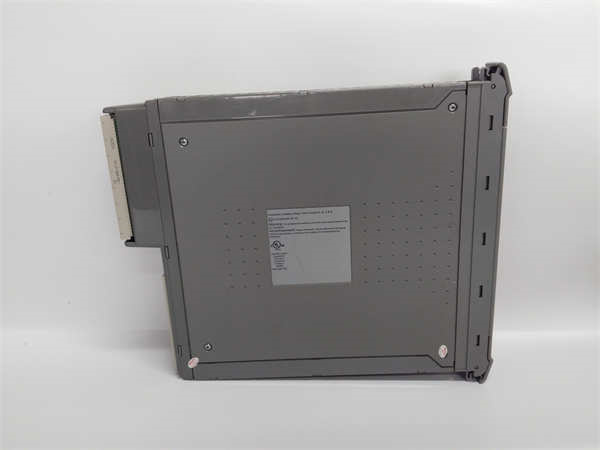

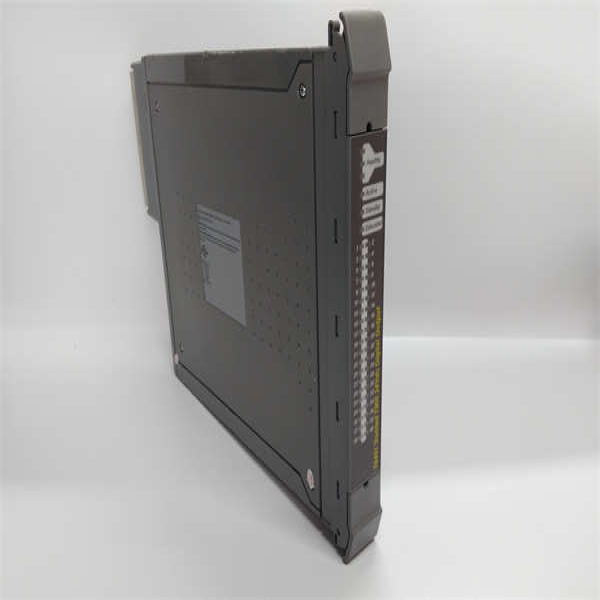

ICS TRIPLEX T8451

Technical Specifications

Main Features and Advantages

Fault-Tolerant Signal Integrity: Each of the T8451‘s 16 channels employs three independent measurement circuits (sensors, ADCs, processors). Results undergo hardware-based voting before transmission to the safety controller. If one circuit deviates, the channel automatically isolates the fault while maintaining SIL 3 integrity—reducing spurious trips by 99.8% versus simplex systems.

Advanced Diagnostics & HART Intelligence: Real-time monitoring detects open circuits, short circuits, signal saturation, and internal component drift. Predictive analytics identify transmitter diaphragm fatigue or calibration drift via HART® device variables. The module’s “sensor plausibility check” compares adjacent process values (e.g., upstream/downstream pressure) to flag abnormal measurements before they trigger false shutdowns.

High-Density Efficiency: Sixteen isolated channels in a single-slot module reduce cabinet footprint by 40% compared to legacy systems. Hot-swap capability enables replacement without process interruption: Deactivate channels via software, replace the ICS Triplex T8451 in under 90 seconds, and reactivate. Conformal coating and galvanic isolation (1500 VAC) ensure operation in corrosive/EMI-intensive areas like cathodic protection zones.

Application Field

The Honeywell ICS Triplex T8451 safeguards processes where analog signal reliability prevents catastrophic failures. In oil refineries, it monitors separator vessel pressures to prevent over-pressurization and acquires crude flow rates for pipeline leak detection (SIL 3). Offshore platforms rely on the T8451 for wellhead choke valve positioning during gas kick events.

Power plants use the module for boiler drum level control and feedwater flow monitoring, where ±0.05% accuracy prevents turbine water induction. Chemical facilities deploy it for reactor mass flow tracking in exothermic processes. LNG liquefaction trains utilize the ICS Triplex T8451 for cryogenic temperature-compensated pressure measurements. In pharmaceutical manufacturing, it ensures sterile bioreactor pressure control during vaccine production.
