Description

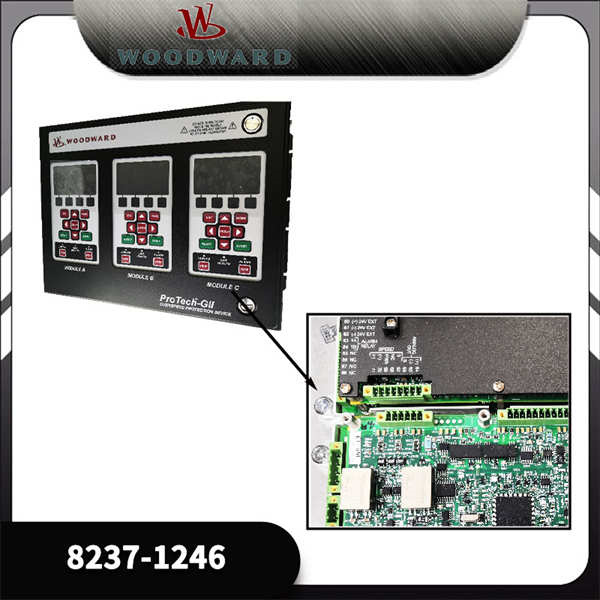

The WOODWARD 8237-1246 is a high-precision Digital Control Module engineered for industrial turbine and engine management systems, delivering critical speed regulation and process control for mission-critical applications. As part of Woodward’s 8000-series platform, this module integrates advanced algorithms to govern rotational equipment like gas turbines, diesel generators, and steam turbines with micron-level accuracy. The 8237-1246 serves as the computational core for safety-critical functions—overspeed protection, load sharing, and synchronization—while interfacing seamlessly with Woodward’s ProAct® Digital Control System via high-speed CAN bus or Ethernet/IP communications. Its ruggedized design withstands extreme vibration (15g peak), temperature fluctuations (-40°C to +85°C), and electromagnetic interference, ensuring uninterrupted operation in offshore platforms, power plants, and compressor stations where control stability prevents catastrophic failures.

Designed for SIL 2 compliance (IEC 61508), the module features triple-redundant processing channels that cross-validate outputs every 2 ms. Real-time diagnostics monitor internal circuitry, power integrity, and signal validity, triggering failsafe shutdowns during anomalies. The WOODWARD 8237-1246 reduces commissioning time by 30% through plug-and-play configuration in ToolKit™ software, while its modular firmware supports field upgrades for evolving operational requirements.

Technical Specifications

Main Features and Advantages

Ultra-Fast Fault-Tolerant Control: Three parallel processors execute identical control algorithms with hardware-synchronized voting. Any deviation triggers instantaneous channel isolation while maintaining <0>

Advanced Diagnostics and Cybersecurity: Embedded health monitoring checks RAM/ROM integrity, ADC calibration, and power quality every scan cycle. Role-based access control and encrypted firmware updates (AES-256) defend against unauthorized configuration changes, meeting NERC CIP requirements for critical infrastructure.

Operational Flexibility: Hot-swappable design enables module replacement without turbine shutdown. ToolKit™ software simplifies parameter tuning via drag-and-drop function blocks, while non-volatile storage retains configurations during power loss. The IP66-rated aluminum housing resists salt spray, oil, and particulate ingress in offshore/marine environments.

Application Field

The WOODWARD 8237-1246 dominates critical speed control scenarios:

Power Generation: Governing 50+ MW gas turbines during grid synchronization, maintaining frequency within ±0.1 Hz during load transients.

Oil & Gas: Controlling compressor drives in LNG liquefaction trains, preventing surge conditions during rapid shutdowns.

Marine Propulsion: Managing diesel engines on FPSO vessels, ensuring torque stability during dynamic positioning.

Cogeneration Plants: Synchronizing steam turbines with waste-heat recovery boilers for combined-cycle efficiency.

Pipeline Compression: Regulating gas turbine-driven compressors to maintain discharge pressure within 0.5% setpoint.

Related Products

WOODWARD 9907-167: Fuel metering valve actuator (directly controlled by 8237-1246).

WOODWARD 8271-148: Redundant power supply for governor cabinets.

WOODWARD 2301-D: Legacy governor module upgradeable to 8237-1246.

WOODWARD ProAct® 4.0: DCS platform for centralized turbine management.

WOODWARD SPM-D11: Vibration monitor interfacing with 8237-1246 for mechanical protection.

WOODWARD 8526-041: I/O extension module for additional sensor integration.
