Description

The EMERSON 1C31166G02 is a high-performance Redundant I/O Communication Module for Emerson’s DeltaV™ S-series Distributed Control System (DCS), engineered to ensure uninterrupted data exchange between controllers and field devices in critical process applications. As a core component of the DeltaV architecture, this module enables deterministic communication across dual-redundant Ethernet networks, supporting real-time data transfer for safety instrumented functions (SIF) and process control loops. The 1C31166G02 integrates seamlessly with DeltaV CHARMs (configurable hardware modules), providing galvanic isolation and signal conditioning for up to 24 I/O points per module. Its fault-tolerant design features hot-swappable redundancy with automatic failover (<50>

Designed for SIL 2 compliance (IEC 61511), the module incorporates advanced diagnostics that monitor network health, signal integrity, and hardware faults. The EMERSON 1C31166G02 operates across extreme temperatures (-40°C to +70°C) with IP30 protection, resisting dust and humidity in offshore platforms or pharmaceutical plants. By enabling modular I/O configurations within DeltaV’s electronic marshalling framework, it reduces wiring costs by 40% while accelerating system commissioning through plug-and-play integration.

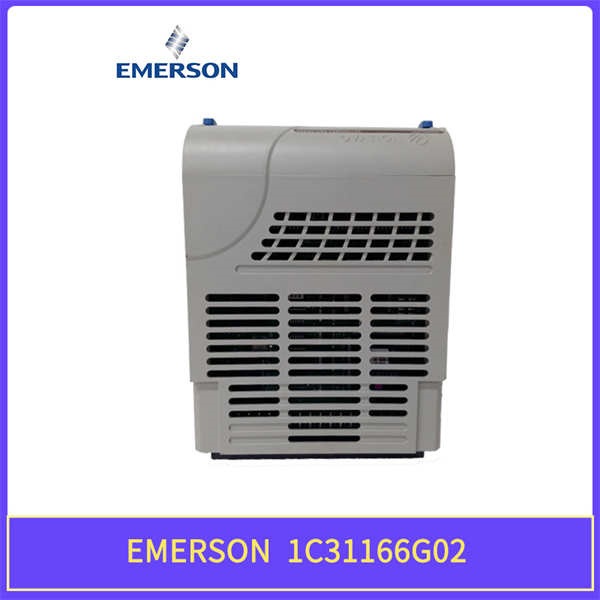

EMERSON 1C31166G02

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: Dual independent processors synchronize data across redundant paths. If the primary 1C31166G02 fails, secondary module activation occurs within 50 ms—ensuring uninterrupted control of critical processes like reactor cooling or compressor antisurge.

Electronic Marshalling Integration: Eliminates traditional cross-wiring by interfacing directly with DeltaV CHARMs. Each EMERSON 1C31166G02 supports mixed I/O types (AI/AO/DI/DO) on a single module, reducing cabinet footprint by 60%. Field device reassignment via software slashes commissioning time.

Advanced Diagnostics: Continuous health monitoring checks network latency, packet loss, and signal drift. Predictive analytics flag degrading components before failure, while integrated HART® pass-through enables smart device calibration without breaking the safety loop. The module’s IP30-rated enclosure withstands corrosive atmospheres in pulp/paper mills.

Application Field

The EMERSON 1C31166G02 excels in mission-critical process control:

Oil & Gas: Manages wellhead safety shutdown systems (ESD) on offshore platforms, processing pressure/temperature signals from SIL 2-certified sensors.

Pharmaceutical: Controls bioreactor sterilization cycles in GMP facilities, maintaining ±0.5°C accuracy via redundant thermocouple inputs.

Power Generation: Governs feedwater valve positioning in boilers, synchronizing analog outputs with turbine load demands.

Chemical Processing: Orchestrates batch reactor sequences with fault-tolerant digital I/O for agitator interlocks and venting valves.

Water Treatment: Monitors ultrafiltration membrane pressures, triggering automated backflush cycles upon abnormal differentials.

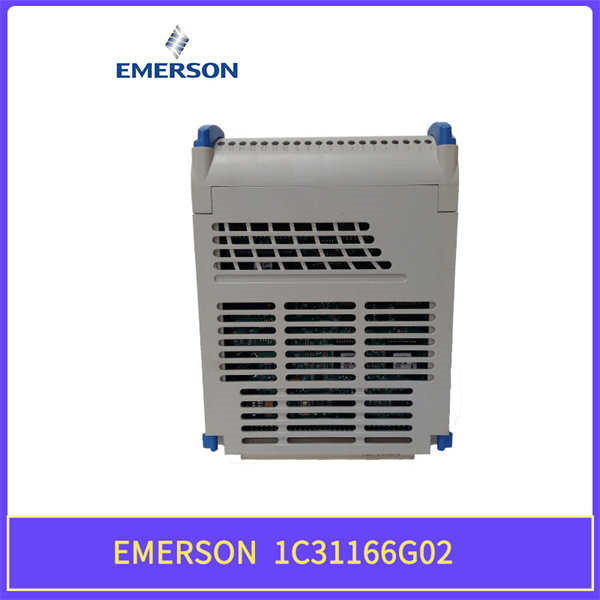

EMERSON 1C31166G02

Related Products

EMERSON 1C31203G01: DeltaV CHARM I/O module (direct interface with 1C31166G02).

EMERSON 1C31232G02: Redundant controller for DeltaV S-series.

EMERSON SD-SDIM4-4: 4-channel digital input CHARM.

EMERSON 1C31197G01: Power supply module for DeltaV racks.

EMERSON 1C31224G01: Ethernet switch for network expansion.

EMERSON 1C31169G02: Non-redundant communication module variant.

EMERSON DeltaV SIS: Safety controller integrating with 1C31166G02.
