Description

The Emerson VE3007 12P4375X012 is a high-density vibration monitoring module designed for critical machinery protection in industrial facilities. Part of Emerson’s Bently Nevada 3500/42M series, this rack-mountable module integrates four independent vibration monitoring channels into a single slot, providing continuous surveillance of machinery health through acceleration, velocity, or displacement measurements. The Emerson VE3007 processes signals from proximity probes, accelerometers, or seismic sensors, delivering real-time data for predictive maintenance and trip/alert functions. Its modular architecture supports redundant configurations, while the 12P4375X012 suffix denotes factory-configured parameters including Modbus TCP/IP output and 4–20 mA interfaces. Paired with the KJ2005X1-BA1 accessory kit (mounting hardware and connectors), this solution minimizes unplanned downtime in high-value rotating assets.

Engineered for reliability, the Emerson VE3007 features advanced diagnostics, including sensor fault detection and signal validation. It complies with API 670 standards for machinery protection systems and offers SIL 2 capability for safety-critical applications. With dynamic range up to 40 kHz and configurable bandpass filters, the module captures subtle vibration anomalies indicative of imbalance, misalignment, or bearing wear. Integration with Emerson’s System 1® software enables comprehensive asset management through automated workflows and AI-driven analytics.

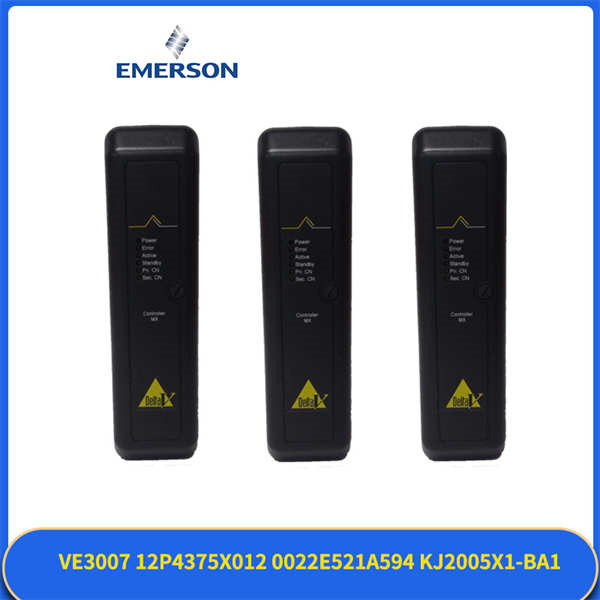

EMERSON VE3007 12P4375X012 0022E521A594 KJ2005X1-BA1

Technical Specifications

Main Features and Advantages

High-Fidelity Monitoring: The Emerson VE3007 captures vibration spectra with 800-line FFT resolution, enabling early detection of sub-synchronous vibrations or harmonic resonances. Automatic sensor validation checks probe health during operation, reducing false trips. Each channel processes signals independently with 24-bit ADCs, ensuring precise measurement even in electrically noisy environments.

Flexible Integration: The 12P4375X012 configuration includes Modbus TCP/IP for seamless data integration into DCS/PLC systems and 4–20 mA outputs for legacy control loops. Dual alarm relays per channel support custom logic for machine shutdown sequences. The module’s front-accessible LEDs provide instant health/alert status without software tools.

Safety and Compliance: With SIL 2 certification and hardware-based voting logic, the Emerson VE3007 12P4375X012 meets safety requirements for turbine overspeed or compressor surge protection. Its rugged design withstands high EMI environments (tested to 50 V/m RF immunity). The KJ2005X1-BA1 kit ensures secure mounting in 3500-series racks, preventing disconnection during vibration events.

Application Field

The Emerson VE3007 12P4375X012 is essential for safeguarding high-speed rotating equipment:

Power Generation: Monitors steam/gas turbine bearings, generator stators, and pump vibrations in nuclear/fossil plants.

Oil & Gas: Protects centrifugal compressors, gas turbines, and offshore platform machinery from catastrophic failure.

Petrochemical: Detects pump cavitation, fan imbalance, and gearbox defects in ethylene cracker facilities.

Marine & LNG: Surveils turbine-driven compressors in liquefaction trains and vessel propulsion systems.

Metals & Mining: Guards critical assets like rolling mill drives and pelletizing kilns against bearing seizures.
Its four-channel density reduces rack space by 50% versus legacy systems, while Modbus TCP/IP enables IIoT connectivity for cloud-based analytics.

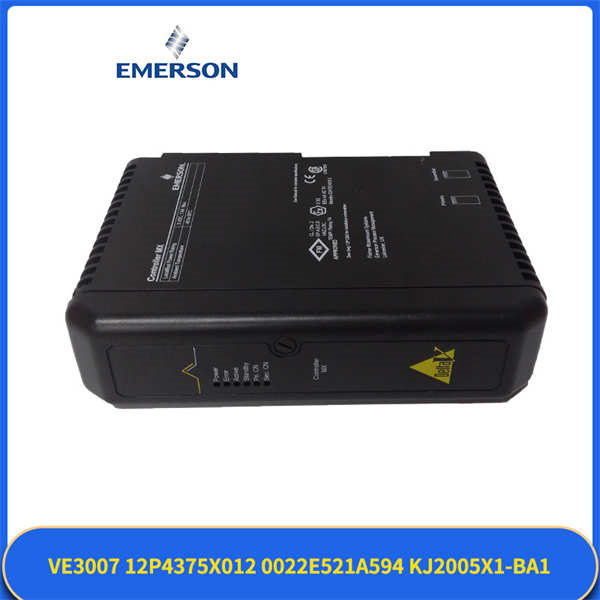

EMERSON VE3007 12P4375X012 0022E521A594 KJ2005X1-BA1
