The B&R 7DM465 is a high-performance single-axis servo drive designed for precision motion tasks in modular automation systems. Part of B&R’s X20 series, this drive integrates seamlessly with Powerlink and EtherCAT P real-time networks to deliver nanosecond-level synchronization in multi-axis applications. The B&R 7DM465 supports 650W continuous power output (1.2kW peak) and features advanced Space Vector Modulation (SVM) technology for ultra-smooth torque control. Its compact 32mm width minimizes cabinet space while supporting motors up to 3A RMS, with built-in safety functions (STO, SS1) certified to SIL 3/PLe. Engineered for flexibility, it accepts incremental/absolute encoders (Endat 2.2, BiSS-C, Hiperface DSL) and includes SynchroLink interfaces for daisy-chaining drives without additional switches.
Optimized for rapid deployment, the B&R 7DM465 leverages B&R’s Automation Studio engineering environment for centralized parameterization and diagnostics. Regenerative energy handling eliminates external resistors in most applications, while the drive’s -25°C to +60°C operating range ensures reliability in harsh industrial environments like plastics extrusion or automated warehousing.

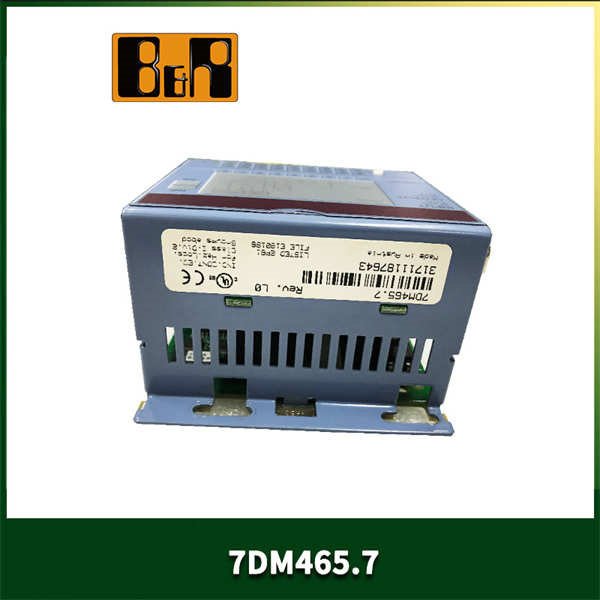

B&R 7DM465
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | B&R 7DM465 |
| Manufacturer | B&R Industrial Automation |
| Product Type | Single-Axis Servo Drive |
| Continuous Power | 650 W |
| Peak Power | 1.2 kW (1 sec) |
| Output Current | 3.0 A RMS (continuous), 5.7 A RMS (peak) |
| Input Voltage | 24–48 VDC (3-phase via external rectifier) |
| Communication | EtherCAT P, POWERLINK, X2X Link |
| Feedback Interfaces | Incremental, EnDat 2.2, BiSS-C, Hiperface DSL |
| Safety Functions | STO (SIL 3/PLe), SS1, SBC |
| Control Bandwidth | 3.5 kHz (velocity loop) |
| Regeneration | Integrated capacitor bank (no external resistor required) |
| Installation Width | 32 mm |
| Ambient Temperature | -25°C to +60°C (-13°F to +140°F) |
| Protection Rating | IP20 |
| Certifications | CE, UL, cULus, DNV-GL |
Main Features and Advantages
Network Integration: Dual EtherCAT P ports enable daisy-chained cabling for power and data, reducing wiring by 70% versus traditional drives. Real-time synchronization via POWERLINK achieves<100ns>
Dynamic Performance: Adaptive current control with 3.5 kHz bandwidth maintains precision under variable loads. Auto-tuning algorithms optimize servo gains during commissioning. The integrated 500J capacitor bank absorbs regenerative energy during braking.
Safety & Diagnostics: SIL 3/PLe-certified Safe Torque Off (STO) and Safe Stop 1 (SS1) functions enable safety integration without external relays. Built-in oscilloscope functionality captures drive signals for troubleshooting.
Application Field
The B&R 7DM465 excels in space-constrained, high-synchronization scenarios:
Packaging Machinery: Drives rotary cutters, fillers, and labelers requiring precise phase synchronization.
Robotics: Powers collaborative robot joints with safety-integrated motion control.
Electronic Assembly: Controls PCB handlers and wire bonders needing micron-level positioning.
Logistics: Actuates shuttle cart lifters and sortation conveyors in automated warehouses.
Plastics Processing: Synchronates extruder screws and cutter axes in compact modules.

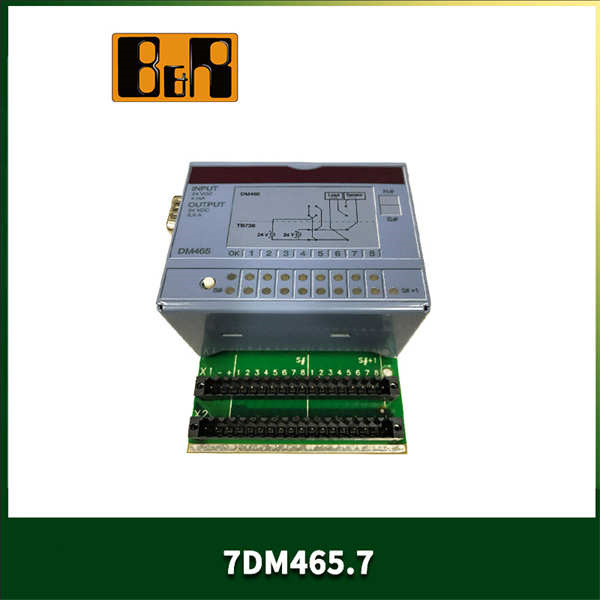

B&R 7DM465
Related Products
B&R 8V1010.00-2: 24V/10A power supply unit for drive systems.
B&R 8AC113.60-2: 3-phase rectifier module for 400VAC input.
B&R 7DM461: Lower-power variant (400W) for small servo axes.
B&R 8MSAC2-3.0: 3m motor cable kit with shielded connectors.
B&R X20CPU0482: Controller with integrated POWERLINK master.
B&R 8BVA0B30-3: Brake resistor module for high-inertia loads.
B&R 7AM472.1-2: Compact servo motor (500W) optimized for 7DM465.
B&R Automation Studio: Unified engineering environment.
