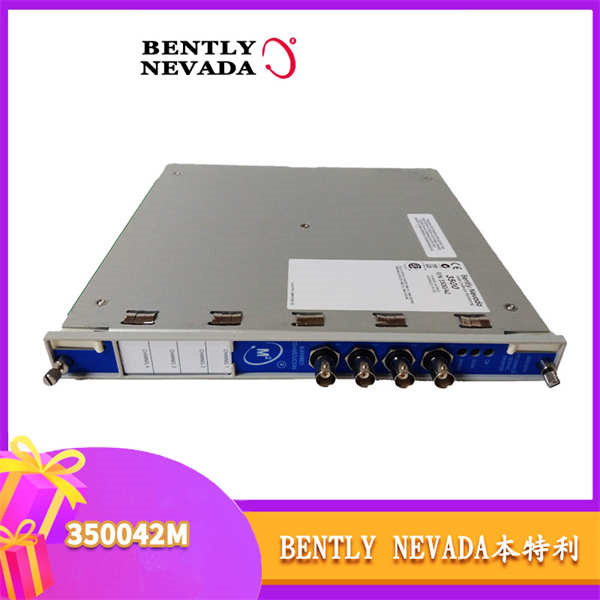

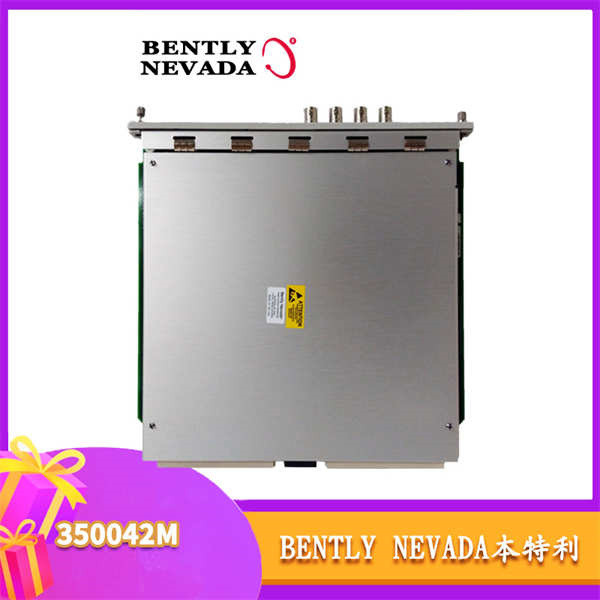

The Bently Nevada 3500/42M is a quad-channel vibration monitoring module designed for comprehensive machinery protection in critical industrial assets. As a core component of Emerson’s Bently Nevada 3500 series, this high-density module processes signals from four independent sensors to monitor vibration, acceleration, and position in real-time. The 3500/42M integrates advanced diagnostics with API 670-compliant measurement algorithms, enabling early detection of imbalance, misalignment, bearing defects, and resonance conditions in turbines, compressors, pumps, and generators. Its ruggedized design operates in extreme environments (-40°C to +85°C), while SIL 2 certification ensures reliability in safety instrumented systems (SIS). With seamless integration into System 1® software, this module transforms raw vibration data into actionable insights for predictive maintenance, reducing unplanned downtime in power generation, oil and gas, and heavy industries.
Bently Nevada 3500/42M
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | Bently Nevada 3500/42M |
| Manufacturer | Emerson (Bently Nevada) |
| Product Type | Quad-Channel Vibration Monitor |
| Input Channels | 4 (fully isolated) |
| Input Types | Accelerometers, Velocity Sensors, Eddy Probes |
| Frequency Range | 0.5 Hz–40 kHz (±1 dB) |
| Dynamic Range | 120 dB |
| A/D Resolution | 24-bit |
| Alarm Relays | 8 (2 per channel: Danger/Alert) |
| Output Signals | 4–20 mA (per channel), Modbus TCP/IP |
| Measurement Accuracy | ±0.5% of reading |
| Power Supply | 24 VDC ±10% (10W max) |
| Operating Temperature | -40°C to +85°C (-40°F to +185°F) |
| Compliance | API 670 5th Ed., ISO 13373-1 |
| Safety Certification | SIL 2 (IEC 61508) |
| Hazardous Approvals | ATEX, IECEx Zone 2 |
| Mounting | 3500 Series Rack (1 slot) |
| Buffer Memory | 128 MB (transient capture) |
Main Features and Advantages
High-Density Monitoring: Four channels in a single slot reduce rack space by 60% versus legacy systems. Parallel processing enables real-time FFT, waveform, and phase analysis across all channels simultaneously.
Advanced Diagnostics:
Sensor Health Validation: Continuous monitoring of probe gap voltage, cable integrity, and bias voltage.
Adaptive Filtering: Configurable bandpass filters isolate fault frequencies (e.g., BPFO for bearings).
Transient Capture: 128 MB buffer stores startup/shutdown data for post-event analysis.
Safety Integration: SIL 2 certification supports safety functions like turbine overspeed protection. Hardware-based trip logic ensures <10>
IIoT Readiness: Native Modbus TCP/IP and OPC UA support direct integration with DCS/PLC and cloud platforms (via System 1®).
Application Field
The 3500/42M protects high-value rotating equipment:
Power Generation: Steam turbine bearings, generator stators, and boiler feed pumps in coal/nuclear plants.
Oil & Gas: Centrifugal compressors in offshore platforms, gas turbine-driven pipelines, and LNG liquefaction trains.
Petrochemical: Reactor agitators, FCCU blowers, and critical pumps in refineries.
Marine: Propulsion engines and thrusters on DNV/ABS-classed vessels.
Hydroelectric: Hydro-turbine bearings and wicket gate mechanisms.
Mining: Crushers, conveyors, and SAG mill drive trains.
Bently Nevada 3500/42M
Related Products
Bently Nevada 3500/42M-01: Enhanced version with SIL 3 capability.
Bently Nevada 3300 XL 8mm Probes: Eddy-current sensors for shaft vibration.
Bently Nevada 3500/22M: Transient Data Interface Module for startup/shutdown analysis.
Bently Nevada 1900/65A Proximitor®: Signal conditioner for remote sensors.
Bently Nevada 3500/92: OPC UA Gateway for System 1® connectivity.
Bently Nevada TK-4E Pro: Field calibration test kit.
Bently Nevada 133819-02: High-temperature accelerometer (up to 120°C).
Bently Nevada 3500/15: TMR safety monitor for SIL 3 applications.
