Description

The HIMA F3-AIO-84-01-982200409 is a high-integrity analog input/output module for HIMA’s F3 series Safety Instrumented Systems (SIS). Designed for SIL 3/4 applications per IEC 61508, this module provides 8 analog inputs and 4 analog outputs with galvanic isolation and cross-circuit diagnostics. The HIMA F3-AIO-84-01-982200409 enables precise monitoring of critical process variables (4–20mA, 0–10V) and safe control of final elements in hazardous environments. Its dual-channel architecture with continuous self-testing ensures <10ms>

As part of HIMA’s fault-tolerant F3 platform, this module supports hot-swap replacement without compromising safety logic. The F3-AIO-84-01-982200409 features HIMA’s proprietary “2oo4D” voting technology, where four independent signal paths perform mutual surveillance. This design achieves >99.99% diagnostic coverage against dangerous undetected failures. Integrated HART 7 communication allows device parameterization and predictive maintenance while maintaining SIL integrity. The module’s ruggedized construction withstands extreme industrial environments, making it essential for oil & gas, chemical, and power generation safety applications.

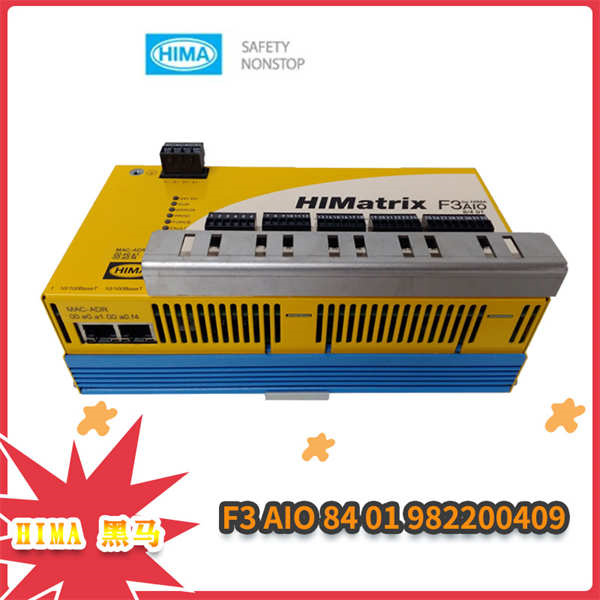

HIMA F3-AIO-84-01-982200409

Technical Specifications

Main Features and Advantages

Ultra-Safe Architecture: The F3-AIO-84-01-982200409 implements HIMA’s patented 2oo4D technology, where four parallel circuits continuously cross-check each other. This detects >99.99% of dangerous failures within 10ms – critical for high-speed shutdown scenarios.

Advanced Diagnostics: Integrated channel-specific fault detection identifies open wires, short circuits, and signal drift. HART digital communication enables predictive maintenance without compromising safety loops. Automatic compensation for temperature drift ensures ±0.1% accuracy over the full operating range.

Cybersecurity Resilience: Hardware-enforced security meets IEC 62443-3-3 requirements. Secure boot with cryptographic signature verification prevents unauthorized firmware modifications. Role-based access control restricts parameter changes.

Seamless Integration: Hot-swappable design allows module replacement under energized conditions. Auto-synchronization with F3 CPUs eliminates manual configuration. Intrinsic safety options (Ex i) available for Zone 0/1 installations.

Application Field

The HIMA F3-AIO-84-01-982200409 secures critical processes in high-risk industries. In offshore platforms, it monitors wellhead pressures and controls ESD valves for subsea isolation. Petrochemical plants deploy it for ethylene furnace trip systems and reactor quench valve management. Power stations rely on its precision for turbine overspeed protection and boiler drum level safety interlocks.

Chemical processing facilities use the module for phosgene leakage detection and batch reactor temperature shutdown systems. LNG terminals leverage its HART capability for smart valve positioners in cryogenic safety loops. Pharmaceutical manufacturers implement it for sterile isolator pressure containment and fire suppression controls.

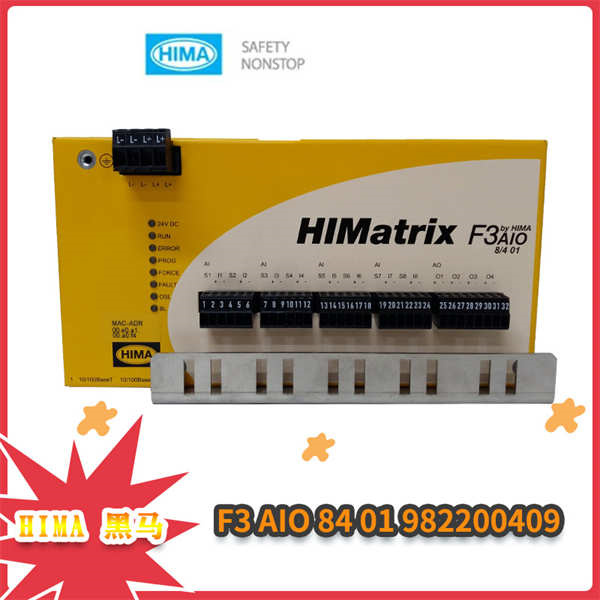

HIMA F3-AIO-84-01-982200409

Related Products

F3-CPU-01: Central processing unit for F3 safety systems

F3-DI-16-01: 16-channel digital input module

F3-DO-8-01: SIL 3 digital output module

F3-RS-01: Redundancy synchronization module

F3-AI-8-01: Analog input-only variant

F3-BASE-01: Baseplate for module mounting

HIMax: Engineering software for configuration
