The HIMA F3236 is a high-density digital input module designed for SIL 3 safety instrumented systems within HIMA’s F3 series platform. Engineered for critical process safety applications, this module provides 32 galvanically isolated digital input channels with advanced diagnostics and ultra-fast response times. The HIMA F3236 features configurable voltage ranges (24-230V AC/DC) with built-in surge protection (4kV/3kA), enabling direct integration of field devices like limit switches, pressure transmitters, and flame detectors without external signal conditioning. Its dual-redundant processing architecture executes continuous self-tests to achieve >99.9% diagnostic coverage per IEC 61508 requirements.
Certified for use in explosive atmospheres (ATEX/IECEx Zone 2), the F3236 maintains deterministic <10ms>

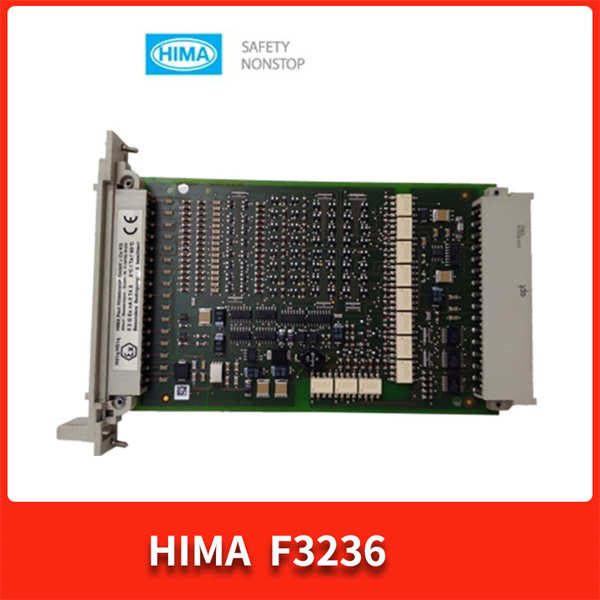

HIMA F3236
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | F3236 |
| Manufacturer | HIMA |
| Product Type | SIL 3 Digital Input Module |
| Input Channels | 32 (galvanically isolated) |
| Input Voltage | 24-230V AC/DC (auto-sensing) |
| Response Time | <10ms> |
| Isolation | 2500VAC channel-to-system |
| Diagnostic Coverage | >99.9% (SIL 3) |
| Fault Tolerance | 1oo2D voting architecture |
| Surge Protection | 4kV/3kA (ANSI/IEEE C62.41) |
| Operating Temperature | -40°C to +85°C |
| Power Consumption | 4.2W (max) |
| Connection | Removable spring-cage terminals |
| Certifications | TÜV SIL 3, IEC 61508/61511, ATEX Cat 3 |
Main Features and Advantages
Ultra-Reliable Signal Acquisition: Quad-redundant signal conditioning paths with continuous cross-comparison detect channel faults within 15ms. Auto-calibration compensates for temperature drift, maintaining ±0.5% timing accuracy at temperature extremes.
Intelligent Diagnostics: Embedded algorithms identify contact degradation, signal bounce, and wiring faults. Predictive analytics forecast field device failures through contact resistance trending. Group-based configuration simplifies setup for large I/O clusters.
Extreme Environment Resilience: Conformal-coated PCB withstands 95% humidity and H₂S exposure. Vibration-resistant design (5g @ 10-500Hz per IEC 60068-2-6) ensures reliability in compressor stations and offshore platforms.
Cybersecurity Integration: Hardware-enforced secure boot with cryptographic signature verification. Role-based access control prevents unauthorized parameter changes. Tamper-evident seals provide physical security audit trails.
Application Field
The HIMA F3236 secures critical infrastructure in high-risk industries. In oil & gas refineries, it monitors emergency shutdown valve positions and fire/gas detector status. Petrochemical plants deploy it for reactor agitator interlocks and distillation column high-level trips. Power generation facilities rely on its deterministic response for turbine lube oil pressure switches and generator hydrogen leak detection.
Chemical processing plants utilize the F3236 for chlorine storage area ventilation controls and polymer reactor pressure interlocks. Pharmaceutical manufacturers implement it for cleanroom differential pressure monitoring and autoclave door safety circuits. Rail transportation systems leverage its wide voltage range for signaling equipment and grade crossing barriers.

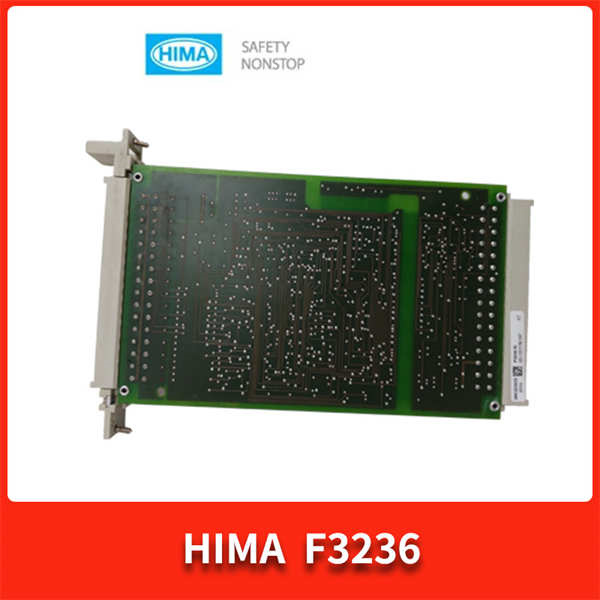

HIMA F3236
Related Products
F3235: 16-channel digital input module (SIL 3)
F3278: 32-channel digital output module
F3255: Analog input module with HART support
F3-CPU-01: Central safety controller
F3-BASE-01: Active hot-swap baseplate
F3-PS-01: Redundant power supply
HIMax 7.2: Safety engineering software suite
