Description

The ROCKWELL T9432 is a sophisticated, high-integrity analog input module designed to integrate seamlessly into the Rockwell Automation ICS Triplex Trusted safety system. This module is specifically crafted for critical applications requiring precise measurement and monitoring of process variables like temperature, pressure, flow rate, and level in industrial environments. The ROCKWELL T9432 supports a wide range of input types including 4-20 mA, 1-5 VDC, and thermocouple signals, making it highly versatile for various field devices. As part of the Trusted platform, the ROCKWELL T9432 ensures reliable operation through its Triple Modular Redundant (TMR) architecture, providing enhanced fault tolerance and diagnostic capabilities that meet SIL 3 standards according to IEC 61508 and IEC 61511.

Incorporating advanced signal processing technologies, the ROCKWELL T9432 delivers accurate, real-time data acquisition with self-diagnostic features that identify potential issues before they impact system performance. Its hot-swappable design allows for easy maintenance without interrupting operations, ensuring continuous availability of safety-critical systems. Designed for use in demanding industrial settings such as oil & gas, chemical processing, and power generation, the ROCKWELL T9432 plays an essential role in maintaining operational integrity and safety compliance.

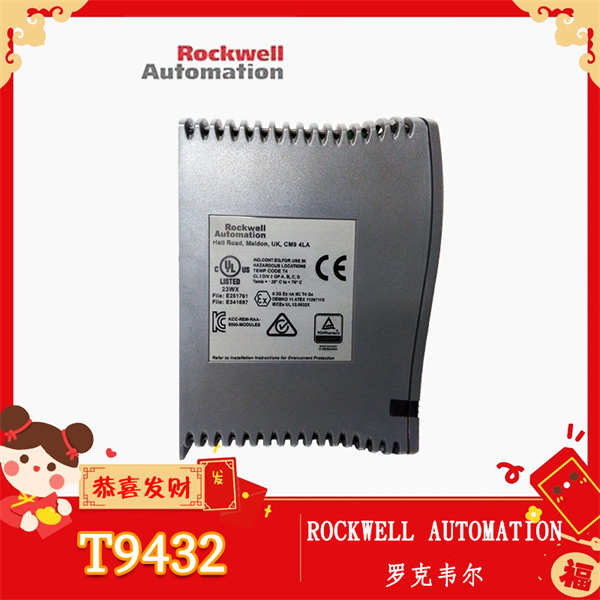

ROCKWELL T9432

Technical Specifications

Main Features and Advantages

The ROCKWELL T9432 offers exceptional accuracy and reliability, crucial for safety-critical applications where precise measurements can prevent catastrophic failures. With its support for multiple input types, this module can interface with a broad array of sensors and transmitters, allowing for flexible integration within existing plant infrastructure. Each channel on the ROCKWELL T9432 is independently monitored and processed by three redundant circuits, ensuring that any detected anomaly triggers immediate corrective action without compromising overall system functionality. This redundancy is vital for achieving SIL 3 certification and maintaining uninterrupted operation during adverse conditions.

Another key advantage of the ROCKWELL T9432 lies in its ability to perform comprehensive diagnostics at both the hardware and software levels. Continuous health checks and error detection mechanisms help operators anticipate and address potential failures proactively. Furthermore, the module’s hot-swappable feature facilitates quick replacements without disrupting ongoing processes, thereby reducing downtime and improving operational efficiency. Compatible with Trusted Configuration Studio software, the ROCKWELL T9432 enables users to easily configure, monitor, and maintain their systems, enhancing overall productivity while ensuring strict adherence to functional safety guidelines.

Application Field

The ROCKWELL T9432 finds extensive application in industries where precision and reliability are paramount. In oil and gas extraction and refining, this module monitors critical parameters such as wellhead pressures, separator levels, and flare stack temperatures, enabling timely intervention in case of deviations from set points. Chemical plants rely on the ROCKWELL T9432 for managing reactor conditions, tracking hazardous material levels, and controlling environmental emissions, thus safeguarding against leaks and spills. Power stations employ this module to regulate steam turbine temperatures, generator cooling systems, and fuel supply pressures, ensuring stable electricity production and preventing equipment damage due to overheating or improper fuel-air mixtures. By delivering robust and dependable analog input handling, the ROCKWELL T9432 supports a safer, more efficient industrial environment across diverse sectors.

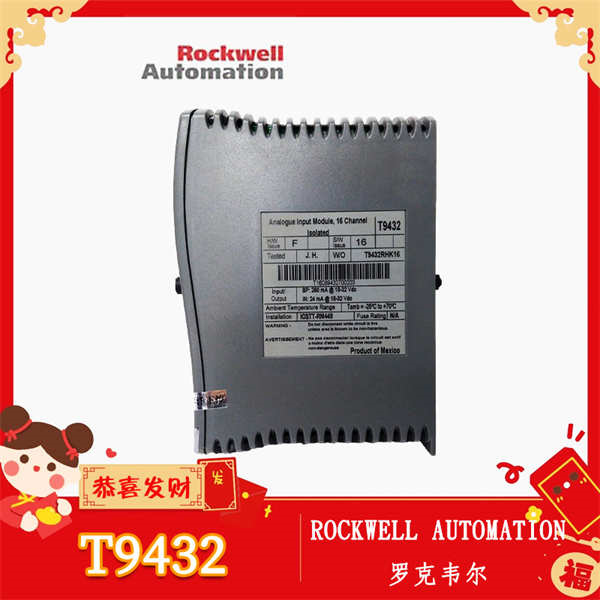

ROCKWELL T9432

Related Products

ROCKWELL ICS T8311: Central logic solver compatible with the ROCKWELL T9432, forming the core of the Trusted safety system.
ROCKWELL ICS T8461: Digital output module used alongside the ROCKWELL T9432 for executing safety actions based on processed inputs.
ROCKWELL ICS T8448: Digital input module complementing the ROCKWELL T9432 for integrating discrete safety interlocks.
ROCKWELL ICS T8458: Another variant of the analog input module supporting different input ranges and types.
ROCKWELL ICS T8500-B: Redundant power supply module designed to support the ROCKWELL T9432 and other Trusted modules.
ROCKWELL ICS T8000: Chassis accommodating the ROCKWELL T9432 and facilitating modular expansion.
Trusted Configuration Studio: Software toolset for configuring and diagnosing the ROCKWELL T9432 and associated safety functions.
