Description

The TRICONEX 3503E is a Triple Modular Redundant (TMR) analog output module engineered for safety-critical control applications within the TriStation V9/V11 safety instrumented systems (SIS). Manufactured by TRICONEX (a Schneider Electric company), this module provides deterministic, fault-tolerant command signals to final control elements such as control valves, variable frequency drives (VFDs), and hydraulic actuators. The TRICONEX 3503E features eight independent output channels, each processed through three parallel circuits with 2-out-of-3 voting logic to eliminate single-point failures. Designed for SIL 3 compliance per IEC 61508/61511, it delivers precise 4-20mA or 0-5V DC outputs with automatic fault masking and advanced diagnostics. Integrated HART 7 protocol support enables bidirectional communication with smart field devices for configuration, calibration, and predictive maintenance without separate hardware. As the critical output interface in TRICONEX’s flagship Tricon platform, the TRICONEX 3503E achieves <20ms>

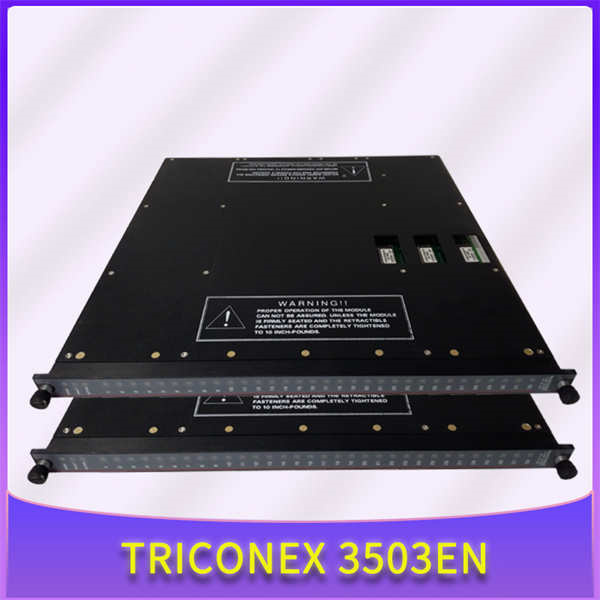

TRICONEX 3503E

Technical Specifications

Main Features and Advantages

Fault-Tolerant Output Architecture: Three independent 16-bit DACs per channel continuously cross-validate outputs. If any DAC deviates >±0.1%, the TRICONEX 3503E automatically isolates the faulty path within 15ms while maintaining 2-out-of-3 voting integrity – ensuring uninterrupted control during component failure.

Intelligent HART Integration: Native HART 7 support enables digital communication with smart valves/positioners via the analog loop. Users access device diagnostics (e.g., stem friction, calibration alerts) and perform online re-ranges without process interruption, reducing maintenance downtime by up to 40%.

Advanced Diagnostics: Real-time monitoring detects open-circuit, short-circuit, and overload conditions. Predictive algorithms track output drift trends, alerting technicians before calibration expiry. Built-in test pulses verify loop integrity without triggering process actions.

Environmental Resilience: Operates at -40°C with conformal-coated circuitry for Arctic applications. Withstands 5g vibration (10–500 Hz) in turbine skids. Electromagnetic immunity >100 V/m at 1 GHz ensures reliability in RF-heavy environments.

Application Field

The TRICONEX 3503E commands precision control in high-consequence processes. In refinery hydrocrackers, it modulates emergency quench valves during temperature excursions, preventing reactor overpressure with ±0.05% accuracy. Combined-cycle power plants deploy it for turbine inlet guide vane control, synchronizing load changes during grid frequency transients.

Chemical processors rely on its SIL 3 outputs for pH control loops in neutralization systems, where overdosing risks exothermic reactions. LNG liquefaction trains utilize the TRICONEX 3503E for cryogenic valve positioning (-196°C service), with HART diagnostics verifying stem seal integrity. Offshore platforms leverage its short-circuit protection to manage subsea production valves, maintaining well isolation during electrical faults. In pharmaceutical batch reactors, the module ensures ASME BPE-compliant steam sterilization control via precision temperature ramping.

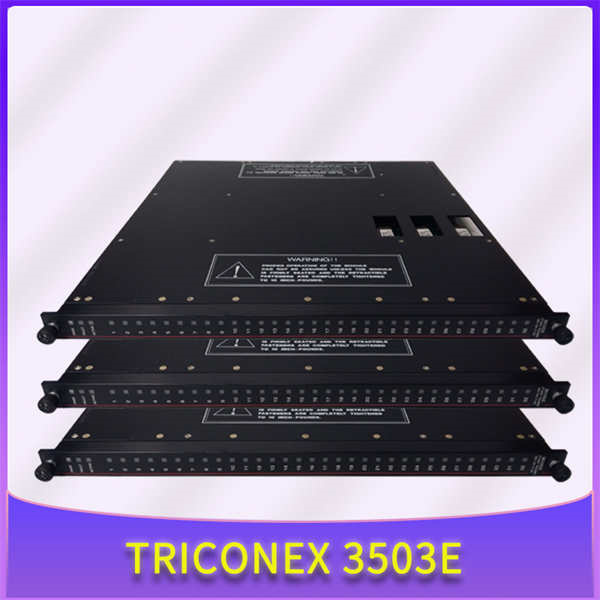

TRICONEX 3503E

Related Products

TRICONEX 4351B: TMR analog input module for process monitoring

TRICONEX 3624: Main TMR processor for safety logic execution

TRICONEX 3805E: HART multiplexer module for non-HART enabled systems

TRICONEX 3401: Digital output counterpart for discrete actuators

TRICONEX 8312: Redundant power supply for chassis

TRICONEX 9761-510: Termination assembly for 3503E field wiring

TRICONEX 2401: High-current output module (5A/channel)

TRICONEX 3708E: OPC communication gateway
