Description

The EMERSON 1C31189G03 is a Safety-Integrity Level (SIL) 3 certified Analog Input Module engineered for critical process monitoring in nuclear and high-hazard industrial applications. As part of Emerson’s Ovation® Safety Instrumented System (SIS), this Class 1E (IEEE 603) module provides redundant acquisition of 4–20mA/HART signals with exceptional ±0.05% accuracy. The 1C31189G03 features dual-channel TMR (Triple Modular Redundant) architecture that continuously cross-validates inputs to prevent spurious trips while detecting sensor or wiring faults within 50ms. Designed for deployment in containment areas and seismic zones, it withstands 75 kRad radiation doses and 5g vibration loads while maintaining signal integrity. For nuclear power plants requiring NRC-compliant safety systems, the EMERSON 1C31189G03 delivers deterministic process monitoring for reactor coolant pressure, containment radiation levels, and safety injection flows with full FSAR documentation support.

Integrated with Emerson’s Ovation SIS platform, this module supports automatic sensor validation and drift compensation across its extended -40°C to +70°C operating range. The 1C31189G03‘s galvanic isolation (2000V) eliminates ground loops in complex electrical environments, while its HART 7 digital passthrough enables predictive maintenance of smart transmitters without compromising safety functions. For fossil plants and chemical facilities, the EMERSON 1C31189G03 provides API 670-compliant machinery protection and NFPA 85/86 burner management with pre-certified SIL 3 logic blocks for rapid system integration.

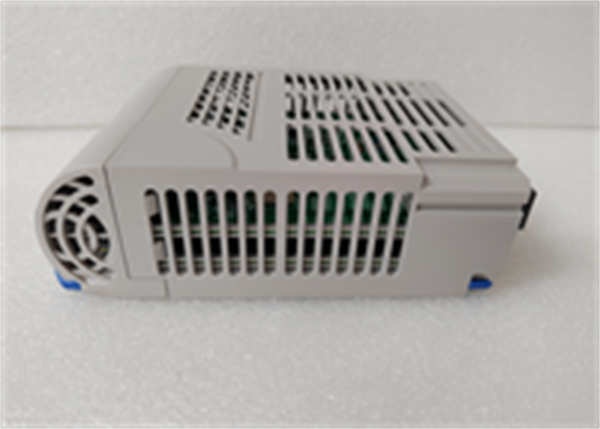

EMERSON 1C31189G03

Technical Specifications

Main Features and Advantages

Fault-Tolerant Measurement:
Triple-channel 24-bit ADC with continuous 2oo3 voting detects discrepancies >0.1% within 50ms. Automatic drift compensation maintains calibration stability <0>

Cyber-Secure HART Integration:
Encrypted HART 7 communication passthrough with dedicated signal transformers prevents attack surfaces. Digital isolation preserves SIL 3 integrity while enabling device diagnostics.

Extreme Environment Resilience:
Radiation-hardened components and conformal-coated PCB withstand containment atmospheres. Vibration tolerance (5g @ 10–500Hz) ensures stability in turbine decks.

Regulatory Compliance:
Pre-validated FSAR templates for NRC 10CFR50 Appendix B compliance. Full QAM-1 manufacturing records with NUPIC audit trails.

Predictive Diagnostics:
Continuous monitoring of loop resistance, sensor degradation, and EMI-induced errors. Generates maintenance alerts before deviations impact safety functions.

Application Field

The EMERSON 1C31189G03 secures critical processes in regulated industries:

Nuclear Safety: Containment pressure monitoring, reactor coolant inventory, safety injection flow measurement

Power Generation: Boiler drum level safety interlocks, turbine lube oil pressure protection

Oil & Gas: HIPPS (High-Integrity Pressure Protection) valve verification, compressor surge control

Chemical: Exothermic reactor cooling flow monitoring, toxic gas detection safety layers

Pharma: Sterilizer vessel pressure/temperature SIS with FDA 21 CFR Part 11 compliance

Deployed in Class 1E instrument racks and SIL 3 certified safety panels, the 1C31189G03 interfaces with Rosemount transmitters in containment penetrations and high-EMI environments like compressor stations.

EMERSON 1C31189G03

Related Products

EMERSON 1C31132G01: SIL 3 RTD/TC input module complementing 1C31189G03

EMERSON 1C31169G03: TMR Safety Processor executing trip logic for 1C31189G03 signals

EMERSON 1C31144G01: Class 1E power supply for Ovation SIS chassis

ROSEMOUNT 3051S: SIL 3 pressure transmitter pairing with 1C31189G03

EMERSON 1C31189G04: Enhanced version with cyber-secure Ethernet/IP

EMERSON Ovation SIS Builder: Configuration software for 1C31189G03 logic

EMERSON 1C31444G01: Redundant power supply module

EMERSON 1C31157G02: Vibration monitor for integrated machinery protection
