Description

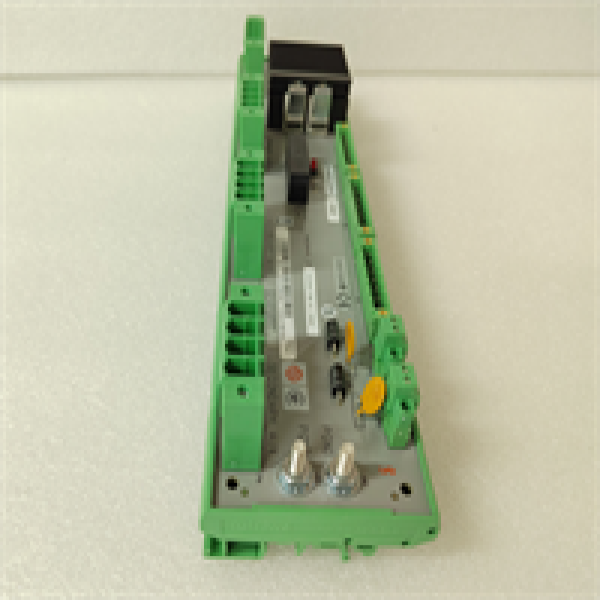

The EMERSON 5X00489G01 is a Redundant Power Supply Module engineered for the WDPF II (Westinghouse Distributed Processing Family) distributed control system, delivering fault-tolerant 5V DC power to critical control processors and I/O modules in power generation and industrial facilities. Designed for 24/7 mission-critical operation, this module features dual independent power converters with automatic load sharing and seamless failover during primary supply loss. The 5X00489G01 ensured uninterrupted operation of turbine controls, safety interlocks, and process automation systems by maintaining ±0.5% voltage regulation despite input fluctuations or single-module failures. Its robust design incorporated surge suppression meeting IEEE C62.41 Category A standards and electromagnetic compatibility exceeding EN 55011 Class A – essential for noisy electrical environments like switchgear rooms and turbine halls.

As part of Emerson’s legacy WDPF II support portfolio, the EMERSON 5X00489G01 supported hot-swap replacement during online operations, enabling maintenance without system shutdown. Radiation-hardened variants (5X00489G01-N) utilized tantalum capacitors and ceramic substrates to withstand cumulative radiation doses in nuclear applications. The module’s integrated diagnostics monitored input voltage sag, output overcurrent, and thermal overload, triggering predictive alarms before power quality issues impacted control reliability.

5X00489G01 EMERSON

Technical Specifications

Main Features and Advantages

Fault-Tolerant Architecture: The EMERSON 5X00489G01 implemented autonomous current sharing with <5>0.98) reduced harmonic distortion, meeting IEEE 519 requirements without external filters.

Advanced Diagnostics: Real-time monitoring of output voltage (±0.1% accuracy), load current (±2% accuracy), and component temperatures enabled predictive maintenance. Fan speed dynamically adjusted based on thermal sensors, extending service life in dusty environments. Radiation-hardened variants featured neutron-absorbing shielding and single-event burnout (SEB) resistant MOSFETs for nuclear installations. The 5X00489G01’s front-panel LED indicators provided instant fault localization: green (normal), amber (marginal), red (critical).

Application Field

The EMERSON 5X00489G01 secured power integrity in critical infrastructure:

Power Plants: Backing turbine control processors (5X00109G02) during grid voltage sags

Nuclear Facilities: Powering safety-related I/O in auxiliary buildings (5X00489G01-N)

Refineries: Supporting fire/gas detection systems during emergency generator startup

Offshore Platforms: Operating in NACEx enclosures for compressor control

Steel Mills: Maintaining continuous power to blast furnace quench controls

During voltage dips down to 88V AC, the module maintained full-rated output for 200ms – sufficient for control processors to execute orderly shutdown sequences.
