Description

The WESTINGHOUSE 5X00583G01 is a High-Density Digital Input Module engineered for the WDPF II (Westinghouse Distributed Processing Family) distributed control system, providing critical dry/wet contact monitoring capabilities in power generation and industrial automation environments. Designed for mission-critical applications, this module interfaces with 32 discrete field devices per card—including limit switches, motor run status contacts, and emergency shutdown signals—while maintaining galvanic isolation between channels to prevent ground loops. The 5X00583G01 delivers sub-10ms scan times for rapid detection of trip conditions in turbine protection systems and safety interlocks. Housed in a compact form factor, it features surge protection exceeding IEEE C62.41 Category IV standards, enabling reliable operation in electrically noisy switchgear rooms and substations.

As part of Emerson’s legacy WDPF II support portfolio, the WESTINGHOUSE 5X00583G01 implements advanced diagnostics like contact weld detection and channel-level health monitoring. Its radiation-hardened variant (5X00583G01-N) meets IEEE 323 qualifications for nuclear balance-of-plant systems, where it monitors pump seal failure indicators and valve position feedback. The module’s patented noise rejection circuitry filters out transients up to 10kV/µs, ensuring signal integrity during lightning strikes and switching events.

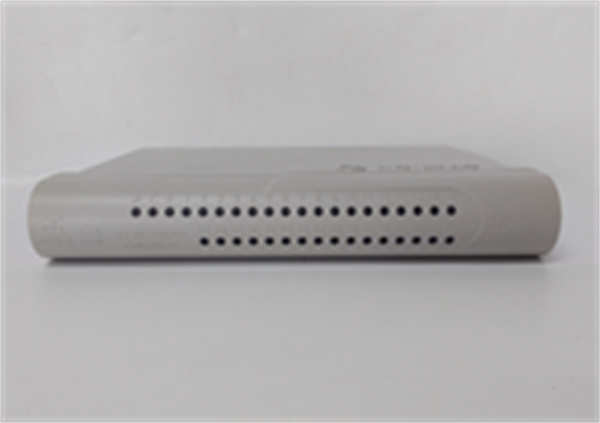

5X00583G01 WESTINGHOUSE

Technical Specifications

Main Features and Advantages

Advanced Diagnostics: The WESTINGHOUSE 5X00583G01 continuously monitors contact resistance with ±5% accuracy, detecting welded contacts before they cause control failures. Each channel features independent LED status indication and open-wire detection—critical for safety-related shutdown systems. Radiation-hardened variants utilize ceramic optoisolators capable of withstanding 10⁶ rad total gamma dose without signal degradation.

High Noise Immunity: Unlike conventional DI modules, the 5X00583G01 incorporates magnetic field cancellation and active RFI filtering, rejecting 200V/m electromagnetic interference per EN 61000-4-3. Its configurable debounce logic handles contact chatter during vibration events common in turbine halls. The module’s dual-watchdog timers initiate automatic channel reset during transient faults, maintaining >99.999% availability in critical applications.

Application Field

The WESTINGHOUSE 5X00583G01 secures operations across:

Power Generation: Monitoring turbine lube oil pressure switches (API 670) and generator breaker status

Nuclear Facilities: Sensing containment penetration alarms (5X00583G01-N)

Oil & Gas: Detecting ESD valve positions and fire system actuation

Water Treatment: Tracking pump auto/manual selector switches

Manufacturing: Scanning safety interlock chains on robotic cells
During grid instability events, its rapid scan capability triggers under-frequency load shedding within 12ms.

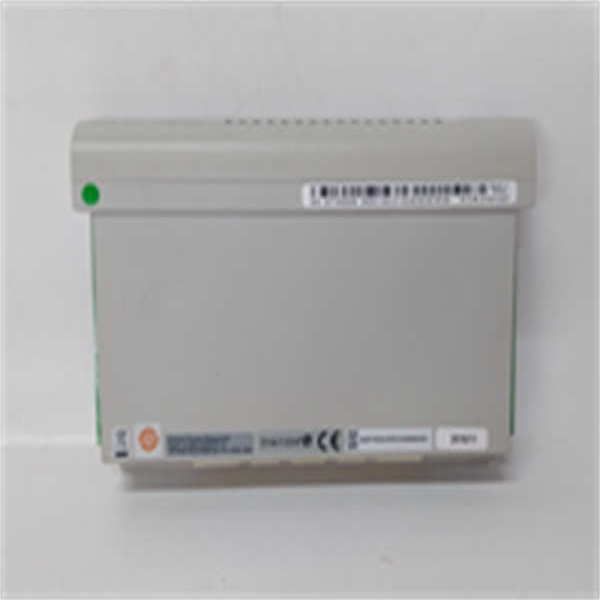

5X00583G01 WESTINGHOUSE
