The Reliance Electric 57C430 is a high-accuracy signal conditioning module designed for Reliance SPRINT DC drive systems, serving as the critical interface for motor feedback and process variable acquisition. This module processes analog signals from tachometers, encoders, and process sensors, converting them into precision digital data for the drive’s control logic (e.g., 57C409). Engineered for electrically noisy industrial environments like steel rolling mills and paper machines, the 57C430 features galvanic isolation (2500V AC) and advanced filtering to reject EMI/RFI interference that could compromise speed regulation or torque control. Its adaptive signal conditioning technology handles wide input ranges (0–±180V for tachs, 4–20mA for process loops) while maintaining ±0.05% linearity – essential for applications demanding micron-level positioning or<0>

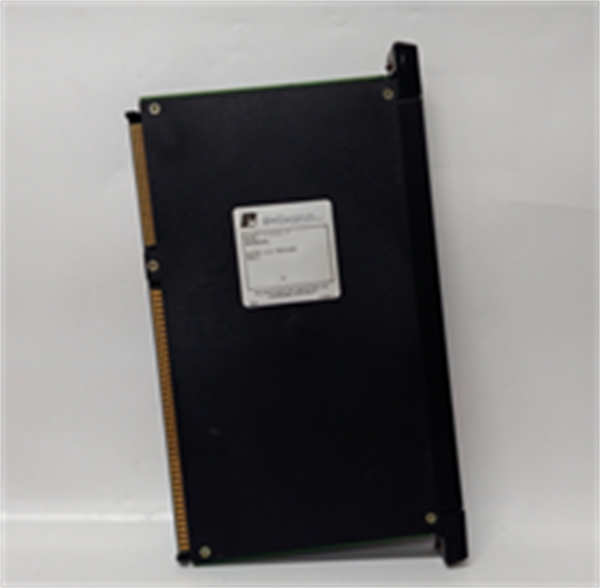

57C430 RELIANCE
Technical Specifications
| Parameter Name | Parameter Value |
| Product Model | 57C430 |
| Manufacturer | Reliance Electric (Rockwell Automation) |
| Product Type | Signal Conditioning Module |
| Input Channels | 2 Independent (Configurable per Channel) |
| Input Types | Tach (±180V DC), Encoder (A/B/Z), 4–20mA, ±10V |
| Isolation | 2500V AC (Channel-to-Channel/System) |
| Linearity | ±0.05% of Full Scale |
| Bandwidth | 10 kHz (Tach/Encoder), 100 Hz (Analog) |
| ADC Resolution | 16-bit |
| Common-Mode Rejection | >120 dB @ 60 Hz |
| Diagnostics | Open Wire, Signal Loss, Overrange |
| Operating Temperature | 0°C to +55°C |
| Power Supply | ±15V DC (From 57C410A) |
| Communication | Parallel Data Bus to Control Module |
| Response Time | <100> |
| Certifications | UL 508, CE, EN 61000-6-2 |
Main Features and Advantages
Precision Signal Processing:
Auto-calibrating input stages compensate for sensor drift
Programmable digital filters suppress vibration-induced tach ripple
Encoder interpolation (4x) enhances positioning resolution
Intelligent Diagnostics:
Real-time validation of signal integrity with<2>
Non-volatile storage of calibration parameters during power loss
LED per channel indicates status (green=OK, red=fault)
Robust Integration:
Conformal-coated PCB withstands humidity and chemical exposure
DIN-rail mounting with vibration-resistant connectors
Hot-swappable in redundant configurations
Application Field
The Reliance Electric 57C430 is indispensable in DC drive systems requiring ultra-precise feedback:
Steel Industry: Processing tach signals for reversible rolling mill stands
Paper Converting: High-resolution encoder feedback for tension-controlled winders
Rubber Mixing Mills: 4–20mA temperature/pressure monitoring
Crane & Hoist: Dual-encoder safety validation for overhead lifting
Printing Presses: Color registration control via line-shaft encoder signals

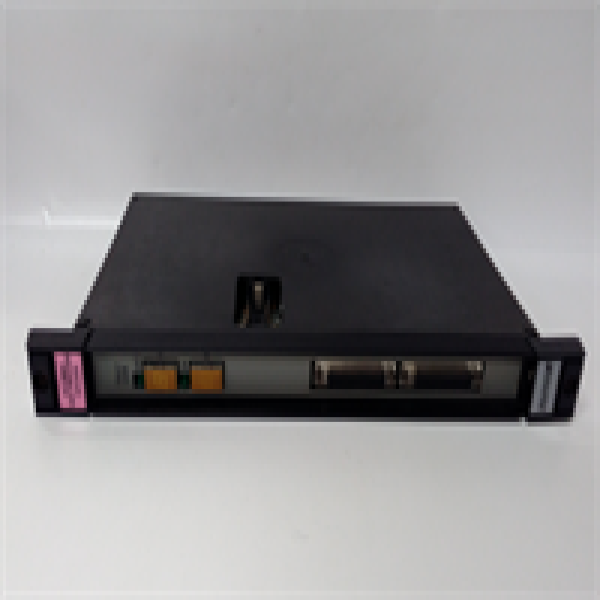

57C430 RELIANCE
Related Products
Reliance 57C409: Control processor utilizing 57C430 signals
Reliance 57C410A: Power supply for module operation
Reliance 57C438: Current feedback board for closed-loop torque control
Reliance TACH-5-180: 180V DC tach generator compatible with 57C430
Reliance ENC-1024-5: 1024 PPR encoder for high-resolution position feedback
Rockwell 57C-RPS1: Replacement terminal block kit
Reliance 57C402: Operator interface for signal monitoring
Reliance 0-54321-2: Signal conditioner for RTD/thermocouple inputs
