Description

The FOXBORO 873EC-JIPFGZ is a high-density, digital input termination module that serves as the critical interface between the field wiring and the control electronics in a Foxboro I/A Series system. This module is specifically designed to manage discrete (on/off) DC input signals from a wide array of field devices such as limit switches, proximity sensors, pushbuttons, and solenoid valve feedback contacts. Its primary function is to provide a secure, isolated, and conditioned connection point, ensuring that the status of these field devices is accurately and reliably communicated to the system’s Fieldbus Module (FBM). By consolidating multiple termination points, fusing, and signal conditioning into a single, robust unit, the 873EC-JIPFGZ dramatically simplifies control panel layout, reduces wiring complexity, and enhances the overall maintainability and security of the digital input subsystem.

The intrinsic value of the FOXBORO 873EC-JIPFGZ lies in its ability to protect sensitive control system components from the harsh realities of the plant environment. It incorporates robust electrical isolation and filtering to suppress voltage transients, electromagnetic interference (EMI), and contact bounce that are prevalent in industrial settings. This protection is crucial for preventing false trips, ensuring data integrity, and safeguarding the more expensive FBM and controller hardware from potential damage caused by field-side electrical faults. Engineered for exceptional reliability, this module is a fundamental building block for creating a resilient and dependable I/O structure, making it an indispensable component for any critical monitoring or interlock loop within a Foxboro DCS.

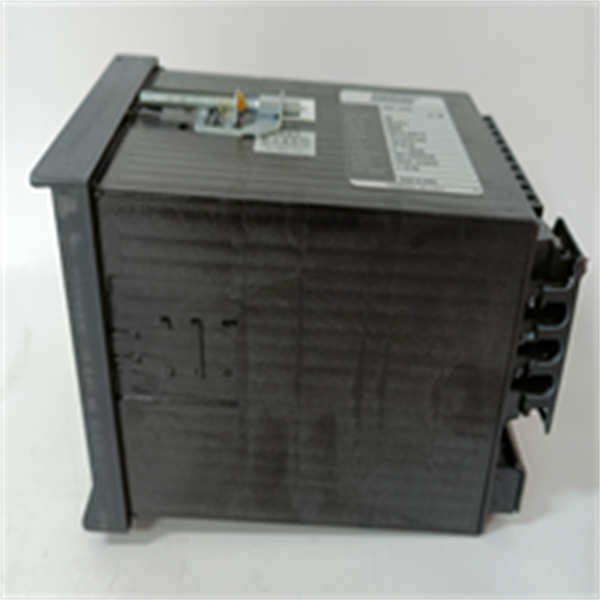

873EC-JIPFGZ FOXBORO

Technical Specifications

Main Features and Advantages

The 873EC-JIPFGZ delivers a powerful combination of high density, superior protection, and operational flexibility. A key advantage is its high channel count; with 16 discrete inputs in a single module, it maximizes I/O density within a control cabinet, reducing the physical footprint and hardware costs associated with larger systems. Each input channel is individually fused, a critical feature that localizes faults. If a short circuit occurs in field wiring, only the fuse for that specific channel will blow, preventing the entire module or group of channels from failing and thereby maximizing system availability and simplifying troubleshooting.

The module provides excellent noise immunity and electrical protection. Built-in optical isolation separates the field wiring from the internal logic circuitry of the FBM, effectively blocking damaging voltage spikes and ground loops. Integrated filtering ensures that the module correctly interprets a stable DC signal and ignores rapid electrical noise that could cause a chattering or false input state. The use of plug-in terminal blocks on the FOXBORO 873EC-JIPFGZ is a significant maintenance advantage, allowing electricians to easily connect, disconnect, or replace wiring without disturbing adjacent circuits or requiring a system shutdown. This rugged and thoughtfully designed module ensures that digital status signals are received accurately and reliably, which is the foundation for effective interlocking and process sequencing.

Application Field

The 873EC-JIPFGZ finds its application in virtually every discrete monitoring function within a continuous process environment controlled by a Foxboro I/A Series DCS. In oil and gas and petrochemical plants, it is extensively used to monitor the status of pump seals, pressure switches, tank level switches, and valve limit switches (open/close feedback) that form the backbone of emergency shutdown (ESD) and pump protection systems. The reliability of these status signals is non-negotiable for ensuring safe startup and shutdown sequences.

In power generation facilities, this module is crucial for monitoring turbine and boiler auxiliaries, including flame detection, lube oil pressure switches, and fan statuses. Within the water and wastewater treatment industry, the FOXBORO 873EC-JIPFGZ is used to track the state of motors, filter status, and alarm horn silence buttons. It is also fundamental in manufacturing and batch processing, such as in pharmaceutical or food production, where it confirms the position of guards, the status of safety interlocks on machinery, and the completion of discrete process steps. Any application requiring the secure and reliable acquisition of a two-state signal in a harsh industrial environment is an ideal use case for this robust termination module.

873EC-JIPFGZ FOXBORO

Related Products

FBM218: A 16-channel digital input Fieldbus Module that pairs directly with the 873EC-JIPFGZ termination module to form a complete digital input subsystem.

FBM247: A high-density digital output module used for controlling motor starters, solenoid valves, and indicator lights.

870ITEC-XXXXX-X: A series of analog termination modules (e.g., 870ITEC-AYFNZ-7) for handling 4-20mA, RTD, or thermocouple signals.

873EC-XXXXXX: Other variants in the 873EC digital termination series, configured for different voltages or output functions (e.g., 873EC-JOPFGZ for digital outputs).

PSS 21S-4B1B1B: A system power supply module that provides clean power to the FBMs and their associated termination assemblies.

CABLE-873-XXX: Pre-fabricated ribbon cable assemblies designed for a reliable connection between the 873EC termination module and its corresponding FBM.
