Description

The Bently Nevada 3500/40M 140734-01 is a high-density, 8-Channel Temperature Monitor module, a vital component within the industry-standard Bently Nevada 3500 Machinery Protection System. This module is specifically engineered to continuously monitor the temperature of critical machinery components using input from Resistance Temperature Detectors (RTDs) or thermocouples. The primary function of the Bently Nevada 3500/40M 140734-01 is to condition the low-level signals from these temperature sensors, convert them into precise engineering units (e.g., °C or °F), and compare these values against user-configured alert and danger setpoints. Its core value lies in providing early warning of overheating conditions in assets like turbine bearings, compressor stages, motors, and pumps, enabling operators to take corrective action or initiating an automatic shutdown to prevent severe mechanical damage and costly downtime.

As an integral part of the modular 3500 framework, the Bently Nevada 3500/40M 140734-01 offers exceptional point density, allowing for up to eight temperature points to be monitored from a single slot in the rack. This design maximizes monitoring capability while minimizing the system’s physical footprint and cost per point. The module is designed for exceptional accuracy and stability, employing advanced signal filtering to reject electrical noise that is prevalent in plant environments. The role of the Bently Nevada 3500/40M 140734-01 is crucial for both protection and predictive maintenance, as trending temperature data can reveal developing issues such as bearing wear, lubrication failures, or process abnormalities long before they lead to a catastrophic failure.

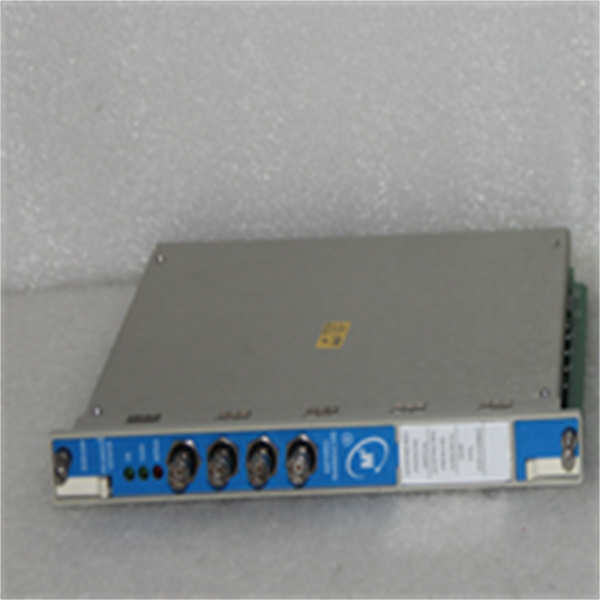

3500/40M 140734-01 BENTLY

Technical Specifications

Main Features and Advantages

The Bently Nevada 3500/40M 140734-01 is distinguished by its high channel count and exceptional flexibility. Each of its eight channels can be individually configured via software for a specific sensor type (RTD or thermocouple) and measurement range, allowing a single module to handle diverse temperature monitoring needs across a machine train. This flexibility drastically simplifies spares inventory, as one module type can serve multiple purposes. A significant feature is its built-in sensor diagnostics; the module continuously checks for sensor faults such as open circuits, short circuits, or out-of-range values, providing immediate warning to operators to prevent false readings or missed alarms.

Reliability and stability are paramount. The Bently Nevada 3500/40M 140734-01 utilizes high-quality analog-to-digital conversion and advanced digital filtering to ensure accurate and stable readings, even in electrically noisy environments. The module supports configurable time delays for its Alert and Danger setpoints, which helps to prevent nuisance trips during transient operational states like startup. Furthermore, it provides dedicated, configurable relay outputs (assigned through software) to initiate alarms or shutdowns and can transmit the high-fidelity temperature data to a DCS or plant historian via a 3500/92 Communication Gateway. This combination of density, flexibility, and built-in intelligence makes the Bently Nevada 3500/40M 140734-01 an incredibly efficient and reliable solution for comprehensive machinery temperature protection.

Application Field

The Bently Nevada 3500/40M 140734-01 is deployed across a vast spectrum of industries where overheating is a primary indicator of machine failure. In oil and gas, it is essential for monitoring bearing temperatures on gas turbines driving compressors and generators, as well as on critical pumps and compressors within refineries and offshore platforms. In the power generation sector, the module is fundamental for protecting steam turbines, gas turbines, and hydro generators by monitoring bearing metal temperatures, lube oil temperatures, and gland seal temperatures.

The Bently Nevada 3500/40M 140734-01 is also extensively used in heavy industrial applications such as metallurgy, mining, and chemical processing to protect large motors, fans, gearboxes, and reactor cooling systems. Its primary application is to detect conditions caused by failing bearings, loss of lubrication, cooling system failure, or process overloads. By providing reliable and immediate temperature alerts, the Bently Nevada 3500/40M 140734-01 enables preventative actions that avoid equipment seizure, fires, and other catastrophic failures, ensuring operational safety, protecting capital assets, and maintaining production continuity.

Related Products

3500/45 140734-01: A 4-Channel Temperature Monitor, used for applications requiring fewer points or when a lower channel density is preferred.

3500/15 125740-01: The system power supply module, providing clean and reliable power to the entire rack, including the 3500/40M.

3500/32 125712-01: A 4-Channel Relay Module, which is often configured to receive the Alert and Danger signals from the 3500/40M to execute shutdowns or activate alarms.

3500/92 136180-01: A Communication Gateway module, which allows the temperature data and status from the 3500/40M to be transmitted to a DCS or plant asset management system.

3300/40: The temperature monitor from the previous-generation 3300 system, often upgraded to the 3500/40M platform.

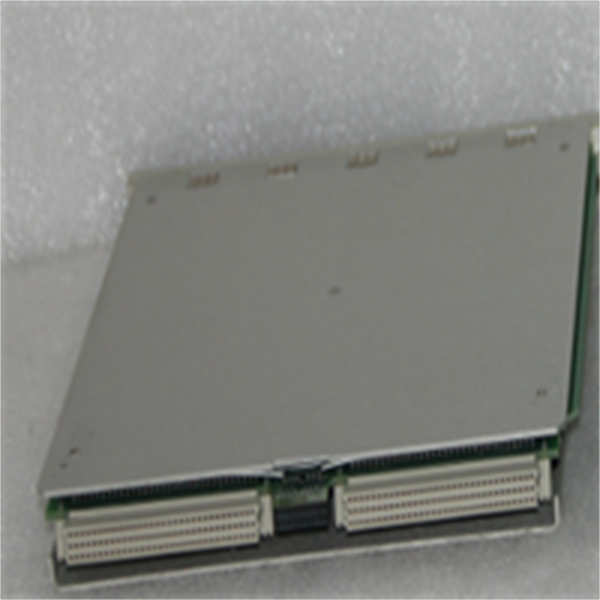

3500/40M 140734-01 BENTLY

Installation and Maintenance

Pre-installation preparation: Before installing the Bently Nevada 3500/40M 140734-01, ensure the 3500 rack power is completely disconnected and locked out/tagged out (LOTO). Verify the slot location is approved for a monitor module according to the system configuration drawing. It is critical to have the configuration file ready for download. Handle the module with extreme care, using a grounded wrist strap to prevent damage from electrostatic discharge (ESD) to its sensitive analog input circuits.

Maintenance recommendations: The 3500/40M 140734-01 module itself requires no routine maintenance. Focus should be on the health of the sensor loop. Periodically verify the calibration of the connected RTDs or thermocouples during scheduled outages. Inspect sensor wiring for damage, corrosion, or loose connections, as these are common sources of error. During operation, routinely check the module’s front-panel LEDs for normal status. Monitor temperature trends for any abnormal shifts that could indicate a sensor drift or a genuine machinery problem. Any module replacement must be performed by qualified personnel following strict safety procedures.
