Description

The Triconex 3501TN2 is a specialized Termination Network Module designed exclusively for use within the Tricon v9, v10, and Tricon Communication Racks manufactured by Triconex, a leading brand in safety-critical systems now under the Emerson automation portfolio. This module is not a processor or I/O module but a vital passive component that provides the essential electrical interface between the main Tricon controller’s I/O bus and the field wiring termination panels. The primary function of the Triconex 3501TN2 is to serve as a signal conditioning and termination point, ensuring electrical signal integrity, providing noise immunity, and completing the physical connection pathway for various I/O modules within the high-integrity Triconex system. Its role is fundamental in maintaining the reliability and accuracy of signals in demanding industrial environments, which is paramount for Safety Instrumented Systems (SIS) and critical process control.

The value of the Triconex 3501TN2 lies in its contribution to the overall system integrity and availability of the Tricon platform. By providing a robust and reliable termination point, it helps prevent ground loops, minimizes electromagnetic interference (EMI), and reduces signal noise that could lead to spurious trips or, worse, a failure to act on a critical demand. This module is a key part of the system’s architecture, enabling the hot-swappable replacement of I/O modules without disturbing the field wiring, which is crucial for minimizing maintenance downtime in continuous process industries. The Triconex 3501TN2 is, therefore, an unsung hero, a foundational component that underpins the performance and reliability of the entire Tricon safety system protecting refineries, chemical plants, and other high-hazard facilities.

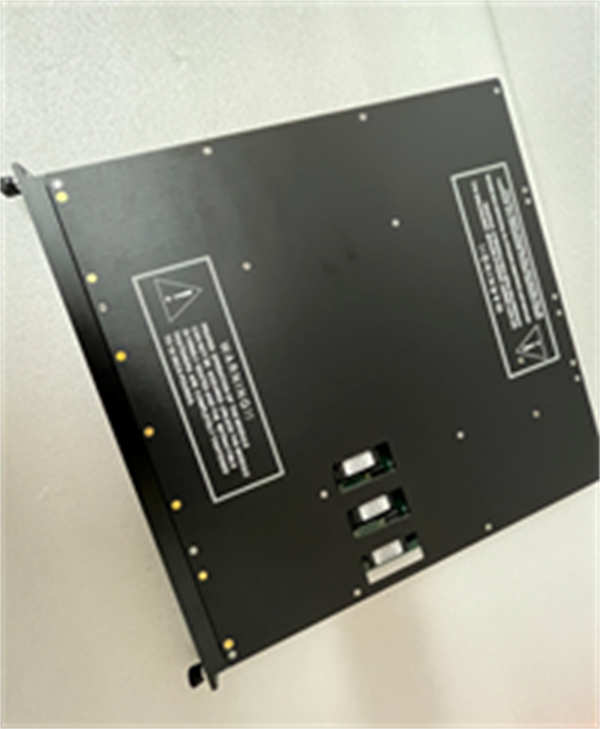

3501TN2 TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex 3501TN2 is characterized by its robust design and its critical role in ensuring signal fidelity. Its primary advantage is the enhancement of system reliability and noise immunity. The module is engineered with precise electrical termination characteristics that match the impedance of the Tricon I/O bus, preventing signal reflections that can corrupt data and lead to erroneous readings by the triple modular redundant (TMR) processors. This is a non-negotiable requirement for maintaining the data integrity essential for any safety instrumented function.

A key feature of the Triconex 3501TN2 is its design that supports online maintenance and high availability. Because all field wiring is terminated directly on the rack’s termination panel or on this module itself, the active I/O module can be safely removed and inserted (hot-swapped) without the need to disconnect any field wiring. This drastically reduces mean time to repair (MTTR) and is a cornerstone of the Tricon system’s high availability architecture. The module is built to the same rigorous quality standards as all Triconex components, designed to operate reliably in the harsh electrical and physical environments typical of industrial control rooms. Its passive, solid-state design ensures a long service life with no required configuration or firmware, making it a simple yet profoundly critical component for system stability.

Application Field

The Triconex 3501TN2 is deployed in industries where safety and high availability are absolutely critical. Its primary application is in oil and gas, within the safety instrumented systems (SIS) of refineries, offshore platforms, and gas processing plants. Here, it is used to terminate signals for functions such as emergency shutdown (ESD), fire and gas detection (F&G), and critical process control, ensuring that signals from field devices like pressure transmitters, shutdown valves, and flame detectors are communicated accurately to the TMR controllers.

In the power generation sector, particularly in nuclear and fossil-fuel plants, the Triconex 3501TN2 is used in systems responsible for turbine overspeed protection and burner management. It is also found in chemical processing plants for high-integrity process shutdown systems. In every application, the module’s role is consistent: to provide a secure, noise-resistant, and reliable termination point that ensures the integrity of the signals governing the SIS logic solver. The Triconex 3501TN2 is an enabling component for systems that must achieve Safety Integrity Level (SIL) 2 and SIL 3 certifications under international standards like IEC 61508 and IEC 61511.

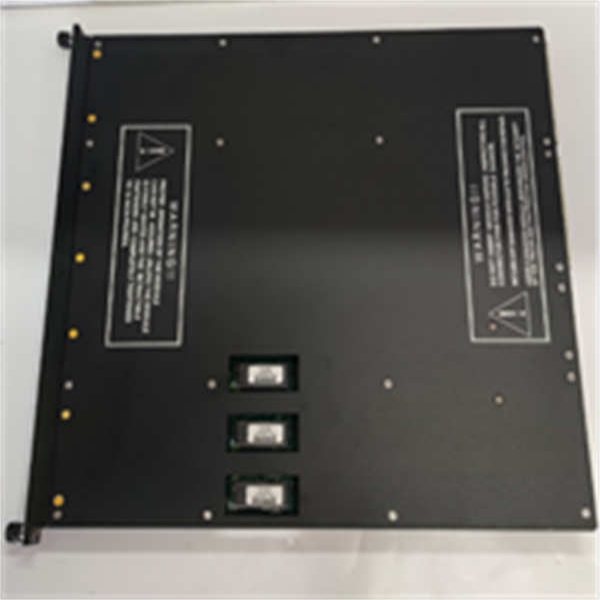

3501TN2 TRICONEX

Related Products

• 3503TN2: A related termination network module designed for use with different or specific I/O modules within the same Tricon v9/v10 platform.

• 3664: A Redundant Communication Module for the Tricon system, which relies on a solid backplane connection.

• 4351B: A typical Analog Input Module that would be paired with a 3501TN2 termination module.

• 3625T: A main TMR Processor Module for the Tricon system, which ultimately processes the signals conditioned by the termination networks.

• 3500E: The Tricon chassis or rack that houses the processor, I/O modules, and their corresponding 3501TN2 termination networks.
