Description

The Triconex 3625C1 is a specific variant of the Main TMR (Triple Modular Redundant) Processor Module for the highly acclaimed Tricon v9 and Tricon v10 Safety Instrumented Systems (SIS), manufactured by Triconex, a pivotal brand within Emerson Automation’s portfolio. This module represents a distinct hardware revision or version within the 3625 series, serving as the ultra-reliable computational heart of the most critical safety applications worldwide. The core function of the Triconex 3625C1 is to execute safety logic with an uncompromising level of fault tolerance, achieved through its Triple Modular Redundant (TMR) architecture. It operates three independent processor channels in perfect synchrony, each running the same control logic and continuously cross-communicating to perform a hardware-based vote on all inputs, outputs, and communications. This ensures that any discrepancy or fault in a single channel is instantly identified and corrected by the two healthy channels, guaranteeing that the system’s outputs remain correct and that safety functions like Emergency Shutdown (ESD) and Fire & Gas (F&G) systems perform reliably on demand.

The intrinsic value of the Triconex 3625C1 lies in its unparalleled ability to prevent catastrophic operational failures while maximizing process availability. It is engineered not just for safety but also for high availability, featuring hot-swappable capability that allows a faulty module to be replaced without shutting down the entire safety system or interrupting the controlled process. This specific “C1” designation often indicates a particular firmware load, component set, or manufacturing revision that ensures compatibility and optimized performance within the broader Tricon ecosystem. The Triconex 3625C1 is more than a component; it is the definitive safeguard for personnel, environment, and multi-million dollar assets in industries where failure is not an option.

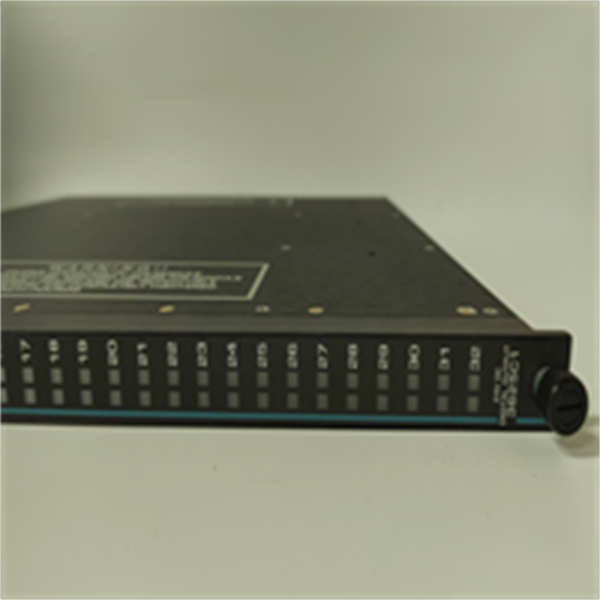

3625C1 TRICONE

Technical Specifications

Main Features and Advantages

The Triconex 3625C1 is defined by its robust TMR architecture and exceptional diagnostic capabilities. Its most significant feature is its genuine hardware-level redundancy. Unlike simplex or dual-redundant systems, the Triconex 3625C1 employs three isolated channels that execute logic simultaneously. A dedicated hardware voter compares the results at every scan cycle. This design ensures that a random hardware failure, a memory error, or a transient fault in one channel cannot cause an incorrect output or prevent the system from responding to a true process demand, thereby eliminating single points of failure.

Enhanced system availability and maintainability are paramount advantages. The Triconex 3625C1 is designed for non-stop operation. Its hot-swappable design allows a technician to remove and replace the module without requiring a system shutdown or compromising the protective function, which is critical for continuous processes where downtime equates to significant financial loss. The module features an extensive suite of built-in diagnostics that continuously monitor the health of each processor, memory location, and internal communication path, providing clear and precise fault reporting to simplify troubleshooting and enable predictive maintenance strategies. This combination of fault-tolerant design, online maintainability, and advanced diagnostics makes the Triconex 3625C1 an industry benchmark for critical process safety.

Application Field

The Triconex 3625C1 is deployed in industries where the highest levels of safety and availability are mandatory. Its primary application is in oil and gas, functioning as the logic solver for Emergency Shutdown (ESD) systems on offshore platforms, in refineries, and at gas processing and LNG facilities. It is equally critical in Fire and Gas (F&G) detection systems, where it must reliably initiate alarms and mitigation measures.

In power generation, the Triconex 3625C1 is used for turbine overspeed protection and burner management systems (BMS) in nuclear, fossil-fuel, and combined-cycle plants. In chemical and pharmaceutical manufacturing, it manages automated safety shutdown systems for high-hazard processes. In every scenario, the Triconex 3625C1 is entrusted with executing the final safety logic, making it the core component for achieving and maintaining the highest Safety Integrity Level (SIL 3) certifications under rigorous international standards.

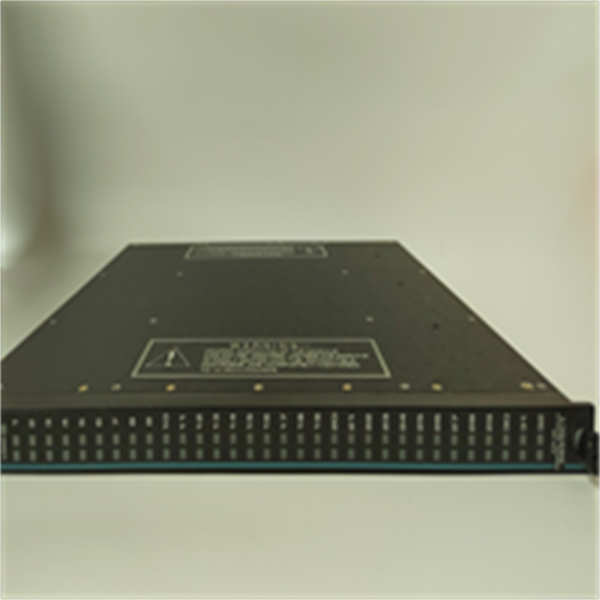

3625C1 TRICONE

Related Products

3625 / 3625A: Other variants within the 3625 series Main Processor family.

3664: A Critical Communication Module that provides the communication link between the 3625C1 and external systems like a DCS.

4351B: A high-density Analog Input Module that supplies critical process data to the Triconex 3625C1.

3700A: A Digital Output Module that executes the safety commands determined by the 3625C1‘s logic.

3501TN2: A Termination Network Module, providing the essential interface between field wiring and the I/O modules under the processor’s control.
