Description

The 8110 is a critical communication or processing module manufactured by Triconex, a world-leading brand in safety instrumentation systems (SIS) and a pivotal part of the Schneider Electric ecosystem. This module is an integral component within the renowned Tricon platform, one of the most trusted triple modular redundant (TMR) control systems globally. The primary function of the Triconex 8110 is to serve as a high-speed communication interface module, facilitating robust and fault-tolerant data exchange between the Tricon controller and other subsystems, such as distributed I/O, human-machine interfaces (HMIs), or higher-level plant control systems (DCS/PLC). It operates on the principle of TMR architecture, where three independent channels process and vote on data simultaneously, ensuring that any single point of failure does not compromise the integrity of the safety function.

Engineered for mission-critical applications where failure is not an option, the Triconex 8110 delivers immense value by guaranteeing the reliability and availability of safety communications. Its design is focused on maintaining the integrity of the safety loop, ensuring that critical shutdown commands and process status information are transmitted without error or delay. The intrinsic value of the Triconex 8110 lies in its role as a secure and reliable gateway, protecting people, assets, and the environment by preventing catastrophic events in hazardous processes. This module is a cornerstone for building a compliant safety instrumented system (SIS) that meets stringent international safety standards like IEC 61508 and IEC 61511.

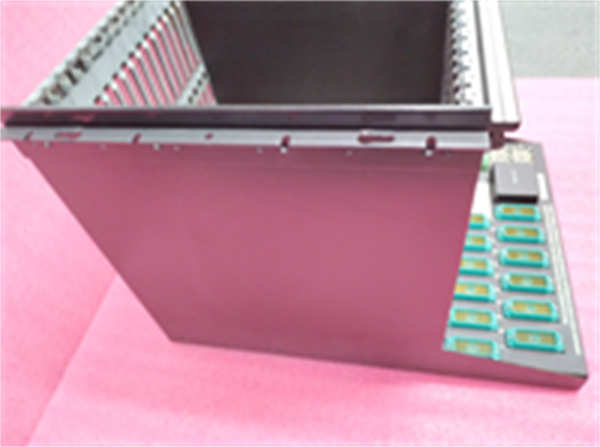

8110 TRICONEX

Technical Specifications

Main Features and Advantages

The Triconex 8110 is distinguished by its unwavering reliability and robust TMR architecture. Its core feature is the triple-channel design, where three independent processors execute identical tasks and a hardware-based voter compares the results. This ensures continuous operation even if a fault occurs in one channel, eliminating single points of failure and providing the highest level of fault tolerance for safety communications. The module employs advanced optical isolation techniques on its communication ports, which effectively decouples the sensitive Tricon electronics from electrical noise, ground loops, and voltage transients present on plant networks, thereby ensuring impeccable signal integrity.

A paramount advantage of the Triconex 8110 is its seamless integration and comprehensive diagnostic capabilities. It is designed for hot-swap replacement, allowing a faulty module to be changed out without necessitating a shutdown of the entire safety system, which is critical for maintaining plant availability. The module provides extensive built-in self-diagnostics that continuously monitor its health and the integrity of its communication links. These diagnostics are reported to the Tricon diagnostics and control panel, enabling proactive maintenance and allowing operators to address issues before they impact the system’s safety availability. This combination of hardware resilience and intelligent software diagnostics translates directly to enhanced safety, reduced operational risk, and lower total cost of ownership.

Application Field

The Triconex 8110 is deployed in the most safety-critical applications across a range of high-hazard industries. In the oil and gas sector, it is an essential component in emergency shutdown (ESD) and fire and gas (F&G) systems on offshore platforms, in refineries, and along pipelines, where it ensures reliable communication for initiating critical shutdowns to prevent blowouts, fires, or explosions. Within the petrochemical and chemical processing industries, the Triconex 8110 is used in burner management systems (BMS) and process shutdown (PSD) systems to safely manage furnace operations and prevent dangerous chemical reactions.

Furthermore, this module is applied in power generation, particularly in nuclear and fossil-fuel plants, for turbine overspeed protection and reactor shutdown systems. It is also found in pharmaceutical manufacturing where batch processes involve hazardous materials, and in other sectors like metals and mining where large, dangerous equipment requires failsafe control. In all these fields, the Triconex 8110 operates as the communication nerve center for the SIS, ensuring that the Tricon controller can reliably receive process information and execute safety commands to maintain a state of operational integrity and protect human life, environmental assets, and multi-million dollar capital investments.

8110 TRICONEX

Related Products

Tricon Main Processor: The central TMR processing unit (e.g., 3008, 3009, 3510) that the Triconex 8110 communication module serves.

Tricon I/O Modules: Various analog and digital input/output modules (e.g., 3503E, 3700A) that interface with field devices and communicate with the processor.

8401 Network Interface Module: Another Triconex communication module designed for different network protocols or system integration.

Trident I/O Modules: The newer generation of I/O modules for the Tricon system, offering enhanced features.

Tricon Chassis & Power Supplies: The foundational hardware (e.g., 4351B Chassis) that houses the 8110 and other modules.

TriStation 1131: The engineering software suite used to configure, program, and diagnose the Tricon system, including the 8110 module.
