Description

The CMA131 3DDE300411 is a high-density, high-precision analog input module manufactured by ABB for its flagship AC 800M high-performance controller family, integral to the System 800xA and Symphony™ Plus distributed control systems (DCS). This module is specifically engineered to provide a robust and reliable interface for acquiring analog signals from a wide array of field instrumentation. Its primary function is to accurately convert current and voltage signals from process transmitters—such as those measuring pressure, temperature, flow, and level—into high-resolution digital values for use by the control processor. The CMA131 3DDE300411 is designed for applications demanding a high channel count and exceptional measurement accuracy, making it an ideal solution for large process units where maximizing I/O density per rack slot is critical for economic and spatial efficiency.

As a core component of the S800 I/O system, the CMA131 3DDE300411 exemplifies ABB’s commitment to performance and integration. It installs seamlessly into an S800 I/O station, communicating through a dedicated communication interface module to the central AC 800M controller. The module is designed to handle standard industrial signals, including the ubiquitous 4-20 mA current loop and voltage signals, providing versatile connectivity for most analog sensors. The value proposition of the CMA131 3DDE300411 lies in its ability to reduce overall system cost by minimizing the number of modules and rack slots required for high-channel-count applications, while its high accuracy ensures the integrity of the process data upon which advanced control strategies and operational decisions depend. It is a cornerstone for data acquisition in large-scale process automation, from oil and gas refineries to chemical processing plants.

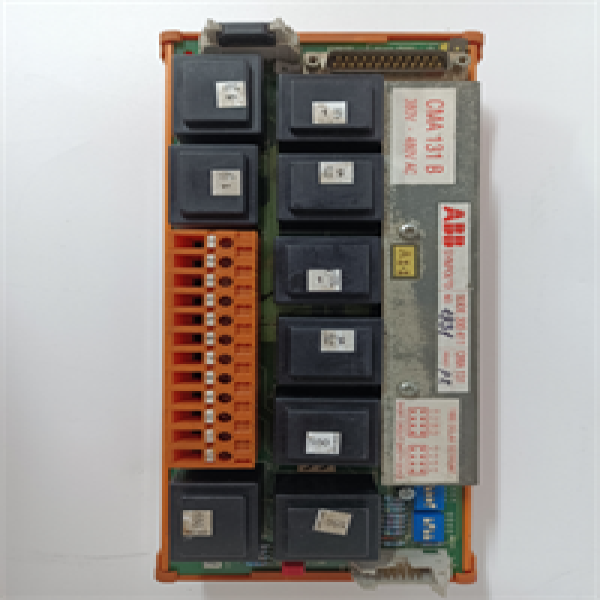

CMA131 3DDE300411 ABB

Technical Specifications

Main Features and Advantages

High density and exceptional accuracy: The primary advantage of the CMA131 3DDE300411 is its high channel density, providing 16 analog input channels in a single module slot. This design dramatically reduces the hardware footprint, cabinet size, and overall system cost for applications with hundreds or thousands of analog points. Despite its high density, the module does not compromise on performance. It features 16-bit resolution and an exceptional accuracy of ±0.05% of span, ensuring that even small changes in the process variable are detected and accurately represented in the control system. This high fidelity is crucial for advanced process control (APC), precise monitoring, and quality assurance in critical processes.

Advanced signal processing and diagnostics: The CMA131 3DDE300411 incorporates sophisticated signal filtering algorithms to suppress noise and ensure stable readings in electromagnetically harsh industrial environments. Each channel is equipped with comprehensive diagnostics that continuously monitor for field wiring faults such as sensor break (open circuit), short circuit, and signal values that exceed the configured range. These diagnostics provide immediate alerts to operators, enabling rapid response to field issues and supporting predictive maintenance strategies to prevent unplanned downtime. The module’s robust design includes galvanic isolation between channel groups and the system bus, protecting the controller from harmful transient voltages and preventing ground loops that can compromise measurement integrity.

Application Field

The CMA131 3DDE300411 is deployed in large-scale, continuous process industries where high-density analog signal acquisition is a fundamental requirement. In oil and gas refineries, it is used in vast numbers to monitor pressures, temperatures, and flows across distillation columns, reactors, and fractionation units. In chemical processing plants, the module is essential for batch and continuous processes, acquiring data from reactors, distillation columns, and storage tank farms where a single unit may have dozens of analog measurement points. Its high accuracy is critical for maintaining product quality and yield.

Within the power generation sector, the CMA131 3DDE300411 is used to monitor temperatures and pressures in boiler and turbine systems, as well as throughout balance-of-plant systems. In water and wastewater treatment facilities, it acquires signals from flow meters, level transmitters, and analyzer systems across extensive treatment networks. The pharmaceutical and food & beverage industries utilize this module for precise monitoring of critical process parameters (CPPs) in validated processes. Essentially, the CMA131 3DDE300411 is the ideal solution for any large-scale application requiring the reliable and accurate acquisition of a high volume of analog signals within the ABB System 800xA or Symphony™ Plus environment.

Related Products

TU811 3BSE013240R1 / TU812 3BSE013241R1: Standard S800 I/O unit bases used to mount and connect the CMA131 3DDE300411 module.

AC 800M Controller (e.g., PM863): The high-performance controller that manages the S800 I/O station.

CI801 / CI854: Communication interface modules (e.g., for Modbus, PROFINET) that manage the I/O data for the AC 800M controller.

SD821 3BDE300411: A power supply module for the S800 I/O rack.

S800 I/O Modules: Other modules in the series, such as the CMA120 (configurable analog I/O) or DSQC Series (digital I/O).

Control Builder Professional: The essential engineering software used to configure and calibrate the CMA131 3DDE300411 module.
