Description

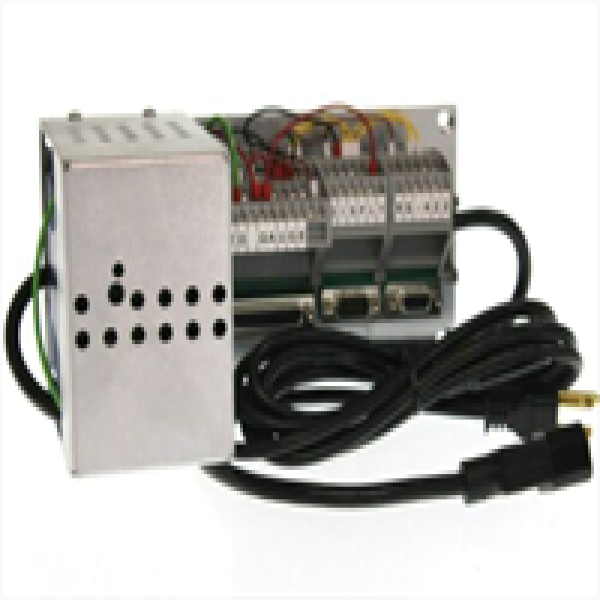

The BETA LASERMIKE DB 25 PSU is a specialized power supply unit engineered specifically for the Beta Lasermike 25 Series of high-precision laser measurement gauges. This critical component is designed to deliver clean, stable, and reliable DC power to the sensitive optical and electronic systems within the gauge head, ensuring optimal performance and measurement accuracy. The BETA LASERMIKE DB 25 PSU converts standard mains AC voltage into the precisely regulated low-voltage DC power required by the gauge’s laser diodes, detectors, and signal processing circuitry. Its design is focused on noise suppression and voltage stability, as even minor power fluctuations can introduce significant errors in the micron-level measurements these systems are designed to perform.

As an integral part of the measurement system, this power supply is more than just a converter; it is a foundation for data integrity. The value of the BETA LASERMIKE DB 25 PSU lies in its ability to isolate the sensitive gauge electronics from electrical noise, transients, and inconsistencies present in the plant power supply. This ensures that the measurement data generated is consistent, repeatable, and trustworthy, which is paramount for quality control, statistical process control (SPC), and closed-loop process optimization. The rugged construction of the BETA LASERMIKE DB 25 PSU ensures dependable operation in an industrial environment, protecting the investment in the sophisticated measurement technology it supports.

DB 25 PSU BETA LASERMIKE

Technical Specifications

Main Features and Advantages

Precision Power Conditioning: The defining feature of the BETA LASERMIKE DB 25 PSU is its ability to deliver exceptionally clean and stable DC power. The gauge’s laser-based optical measurement system is highly sensitive to electrical noise, which can manifest as measurement jitter or drift. This power supply incorporates advanced filtering, shielding, and regulation circuitry to suppress line-borne and radiated electrical noise, ensuring that the output voltage has minimal ripple and noise. This clean power is critical for achieving the micron-level resolution and repeatability that the Beta Lasermike 25 Series gauges are renowned for, making the DB 25 PSU a key enabler of measurement integrity.

Robust Industrial Design and Protection: Engineered for 24/7 operation on the factory floor, the BETA LASERMIKE DB 25 PSU is built to withstand the electrical and environmental challenges of an industrial setting. Its metal chassis provides durability and acts as a shield against electromagnetic interference (EMI). The unit includes comprehensive protection circuits that safeguard both the power supply itself and the expensive gauge head it powers. Overvoltage protection (OVP) prevents damage from internal failures, while overcurrent and short-circuit protection (OCP/SCP) allow the unit to handle output fault conditions without damage. These features ensure system longevity and minimize unplanned downtime.

Seamless Integration and Reliability: The BETA LASERMIKE DB 25 PSU is designed for plug-and-play compatibility with the corresponding gauge models. It features the correct connectors and cabling to integrate directly into the measurement system, simplifying installation and setup. Its high efficiency (>85%) means less energy is wasted as heat, contributing to its reliability and long service life. The unit’s design prioritizes mean time between failures (MTBF), ensuring it provides years of continuous, trouble-free operation. This reliability is essential for production processes that depend on continuous, real-time measurement data for quality assurance.

Application Field

The BETA LASERMIKE DB 25 PSU is deployed wherever Beta Lasermike 25 Series non-contact measurement systems are used for critical quality control. Its primary application is in extrusion processes for plastics, rubber, and tubing, where the gauge provides real-time, closed-loop control of product dimensions (diameter, width, thickness). In these environments, the DB 25 PSU ensures the gauge delivers consistent and accurate measurements, enabling the control system to make precise adjustments to the extruder, thereby minimizing material usage and ensuring product conformity.

In the wire and cable industry, the power supply is essential for gauges measuring the diameter and insulation thickness of copper wire, fiber optic cables, and other cylindrical products. The BETA LASERMIKE DB 25 PSU also supports measurement systems in metals manufacturing for monitoring rod, bar, and wire production. Furthermore, it is used in various converting and rolling processes for monitoring non-metallic sheets and films. In all these applications, the reliability of the DB 25 PSU is directly linked to production quality, yield, and the prevention of costly scrap material.

DB 25 PSU BETA LASERMIKE

Related Products

Beta Lasermike MicroPlus Gauge: The primary laser gauge head powered by this PSU.

Beta Lasermike SiteLine Gauge: Another 25-series gauge model compatible with this supply.

Model 25 Display/Controller: The user interface and processing unit for the measurement system.

M68 Remote Mount Kit: Accessory for relocating the PSU away from the gauge head.

Cable Kits: Specific interconnect cables between the PSU, gauge, and controller.

AAS-25 Air Air System: Air purge accessory for keeping the gauge window clean.
