Description

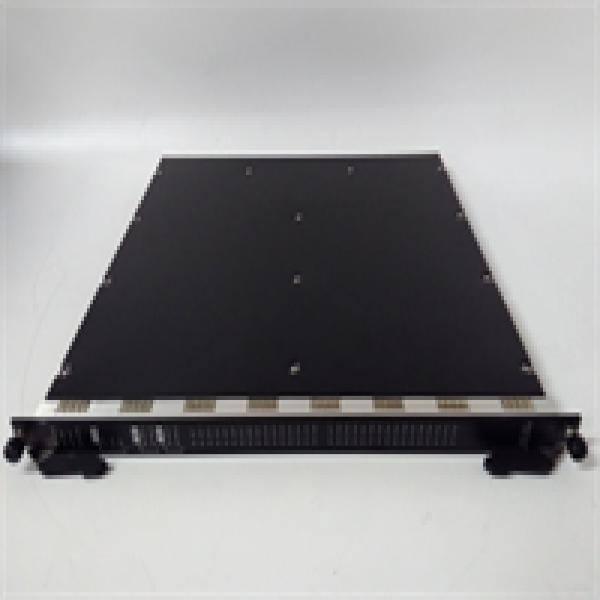

The DO3201 SIS is a high-performance, safety-certified Digital Output Module manufactured by General Electric (GE) for its flagship Safety Instrumented System (SIS) platform. This module is engineered to serve as the critical executive endpoint within a safety loop, responsible for actuating final elements in the field based on commands from the safety logic solver. Its primary function is to translate safety decisions into reliable, fault-tolerant actions that bring a process to a safe state, such as de-energizing solenoids to close emergency shutdown valves, tripping circuit breakers, or activating alarm annunciators and fire suppression systems. The DO3201 SIS is meticulously designed and certified to meet the rigorous requirements for Safety Integrity Level (SIL) 3 as defined by IEC 61508 and IEC 61511, making it a foundational component in protecting human life, the environment, and critical industrial assets.

As a dedicated safety system component, the DO3201 SIS incorporates principles of redundancy, diagnostics, and fault tolerance directly into its architecture. Unlike standard control system output modules, every aspect of its design is scrutinized to minimize the probability of dangerous failures and to ensure that any internal fault is detected and managed in a predictable, safe manner. The module typically features a high level of internal self-diagnostics, continuously monitoring its own health and the integrity of the field wiring and loads connected to it. For facilities operating GE SIS platforms, the DO3201 SIS is an indispensable element for maintaining the certification and operational readiness of their safety interlocks and emergency shutdown systems, ensuring that protective actions are executed with absolute certainty when required.

DO3201 SIS

Technical Specifications

Main Features and Advantages

The DO3201 SIS is defined by its unwavering focus on functional safety and high availability. Its most critical feature is its use of fault-tolerant dry contact relays. This design provides complete galvanic isolation between the sensitive internal electronics and the often noisy and high-power field circuits, offering superior reliability and surge immunity compared to solid-state outputs. This isolation ensures that voltage transients from the field cannot damage the safety controller. The module’s advanced diagnostic capabilities are a significant advantage; it continuously performs built-in self-tests to detect internal faults and can also monitor the field circuit for critical fault conditions such as an open load (broken wire) or a short circuit. This provides an early warning of潜在 faults, allowing for planned maintenance and preventing the system from entering a failed-dangerous state.

Another paramount advantage is its design for online maintenance. The DO3201 SIS typically supports hot-swapping, meaning it can be safely removed and replaced while the rest of the safety system remains operational and without necessitating a process shutdown. This feature is crucial for maximizing plant availability while upholding the highest safety standards. The module’s configuration is managed through dedicated safety software, which includes features to prevent unauthorized or accidental changes to the safety logic. The combination of rigorous certification, proven relay technology, powerful diagnostics, and maintenance flexibility makes the DO3201 SIS an exceptionally reliable and trustworthy choice for the most critical output applications.

Application Field

The DO3201 SIS is deployed exclusively in the most critical process industries where the reliable execution of a safety action is non-negotiable. Its primary application is in emergency shutdown (ESD) systems within the oil and gas industry, including on offshore platforms, in refineries, and at pipeline pumping stations, where it commands the closure of emergency isolation valves and shutdown valves. In Fire and Gas (F&G) systems, it activates fire suppression deluge valves and critical alarm horn and beacon systems. In petrochemical and chemical plants, the DO3201 SIS is used to open quench valves, dump reactants, and initiate emergency ventilation sequences to safely shut down reactors and distillation columns.

It is also a fundamental component in power generation, particularly for triggering turbine emergency stop mechanisms and activating auxiliary cooling systems. In any application involving a GE Safety Instrumented System, the DO3201 SIS is specified to control the devices that must act definitively to prevent a catastrophic event. It is the critical endpoint of the safety loop, responsible for translating a logical decision into a physical action that protects human life, the environment, and multi-million dollar assets.

Related Products

GE SIS Safety Controller: The main logic solver (e.g., a series from the GE SIS platform) that sends commands to the DO3201.

DI3201 SIS: The safety-certified Digital Input Module for reading signals from field switches and sensors.

AI3201 SIS: A safety-certified Analog Input Module for reading 4-20mA signals from transmitters.

SIS Power Supply: A redundant and highly reliable 24VDC power supply unit specifically designed for safety systems.

Proficy Safety Configurator: The dedicated engineering software tool used to configure and program the GE SIS platform.

Safety Field Bus Module: A communication module for integrating the I/O into a safety-rated network.

IS Barrier: Intrinsic Safety barriers often used in conjunction with outputs in hazardous areas.
