Description

The GE DS200DCFBG1BJB is a vital Power Distribution Board within the Mark V series Gas/Steam Turbine Control System, a cornerstone of GE’s SPEEDTRONIC™ platform. This board’s primary function is to serve as the central power management and distribution hub within a drive cabinet, meticulously converting and routing incoming power to various critical control modules, I/O boards, and termination boards. The GE DS200DCFBG1BJB ensures that all connected components receive stable, clean, and correctly conditioned DC power, which is absolutely paramount for the precise and reliable operation of turbine control and protection systems. Its role is fundamental to system integrity, as any power anomaly can directly impact the turbine’s ability to operate safely and efficiently.

Positioned as an essential infrastructure component, the GE DS200DCFBG1BJB exemplifies GE’s design philosophy of modularity and robustness for critical power generation assets. It is engineered to handle the demanding electrical environment of a turbine control cabinet, providing filtering and protection against voltage spikes and transients that could otherwise damage sensitive electronics. The value of this board lies in its contribution to overall system availability and mean time between failures (MTBF). By guaranteeing a reliable power source to all downstream logic and control cards, the GE DS200DCFBG1BJB helps prevent unscheduled shutdowns and ensures the continuous, fault-free operation required for modern power generation facilities.

Technical Specifications

Main Features and Advantages

Robust and Regulated Power Delivery: The GE DS200DCFBG1BJB is engineered with robust power conditioning circuitry to provide highly stable and regulated DC voltages despite fluctuations in the main input supply. This ensures that sensitive microprocessors and signal conditioning circuits on other boards operate within their strict electrical tolerances, preventing logic errors and data corruption. The board incorporates high-quality components rated for continuous operation in an industrial environment, delivering unwavering performance that is critical for 24/7 power generation applications. This inherent reliability directly translates to enhanced turbine availability and reduced risk of trips caused by power-related issues.

Integrated Protection and Diagnostic Capabilities: A significant advantage of this distribution board is its built-in protection features. It includes fuses or current-limiting circuits on its output rails to protect both itself and the downstream modules from damage caused by short circuits or overloads. This design prevents a fault on a single I/O card from cascading and taking down the entire control system. The GE DS200DCFBG1BJB often features diagnostic LEDs or test points, allowing maintenance personnel to quickly verify the presence and quality of all output voltages during troubleshooting. This modular design simplifies maintenance; should a fault occur, the entire GE DS200DCFBG1BJB can be efficiently replaced with a spare to minimize turbine downtime, after which the faulty unit can be repaired offline.

Application Field

The GE DS200DCFBG1BJB is deployed exclusively in environments utilizing the GE Mark V turbine control system, which is a standard in the power generation industry. Its primary application is in combined-cycle power plants (CCPP) and simple-cycle power plants for the control and protection of GE’s Frame series heavy-duty gas turbines. It is equally critical in applications involving steam turbines managed by the Mark V platform. This board is the unsung hero within the control cabinet, providing the essential lifeblood—stable power—to every module responsible for functions like fuel control, valve actuation, sequence control, vibration monitoring, and temperature supervision.

In these critical applications, the GE DS200DCFBG1BJB ensures that the control system can execute its functions with absolute precision and reliability. This includes processing inputs from critical sensors (thermocouples, RTDs, vibration probes) and outputs to actuators and breakers without any power-induced errors. The failure of a component like the GE DS200DCFBG1BJB could lead to a complete loss of control logic power, resulting in an immediate and forced turbine outage. Therefore, its reliability is directly tied to grid stability, plant profitability, and the prevention of catastrophic equipment damage, making it a cornerstone of safe and efficient power generation.

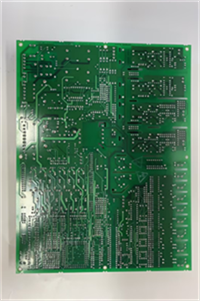

DS200DCFBG1BJB GE

Related Products

DS200DCFBG1B: The base version of this power distribution board, likely without the “JB” suffix which may indicate a specific revision or kit version.

DS200TCEAG1A: A termination or control board that receives power from the DS200DCFBG1BJB.

DS200CTBAG1ADD: A communication terminal board that is powered by the distribution board.

IS200STCIH2A: A stator temperature control interface module, a typical downstream load for the power board.

DS200PCCAG1A: A power converter control card that may interface with or be powered by the distribution system.

DS200LDCAG1A: A load control module that requires clean power from the DS200DCFBG1BJB to function correctly.
