Description

The GE DS200SDCCG1AEC is a high-reliability Sensor Diagnostics and Communication Control Board designed for the Mark VI series Turbine Control System, a pinnacle of GE’s SPEEDTRONIC™ platform. This advanced module serves a dual critical function: it acts as a sophisticated signal conditioner and diagnostics front-end for a suite of critical turbine sensors, while simultaneously managing dedicated communication links to other subsystems. The primary role of the GE DS200SDCCG1AEC is to interface directly with primary sensors monitoring speed, vibration, temperature, and position, providing them with necessary power (e.g., for proximitors), conditioning their raw signals, and performing initial data validation and health checks before transmitting this vital information to the main controller. This preprocessing is essential for ensuring the integrity of the data used for protection and control algorithms.

Positioned as a vital data acquisition and validation node, the GE DS200SDCCG1AEC is engineered to operate with extreme accuracy and resilience in the electrically hostile environment of a turbine control cabinet. Its value lies in its ability to enhance overall system reliability by detecting sensor failures, cable breaks, or signal degradation at the source, before they can lead to erroneous control actions or missed protective trips. The GE DS200SDCCG1AEC often incorporates robust communication interfaces, such as RS-485 or other industrial protocols, to form a reliable data highway with subsystems like the excitation controller or a dedicated vibration monitoring system. Its performance is fundamental to condition-based monitoring strategies, providing the high-fidelity data required for predictive maintenance and asset health management.

Technical Specifications

Main Features and Advantages

Advanced Sensor Interface and Diagnostics: The GE DS200SDCCG1AEC is engineered with sophisticated input circuitry that goes beyond simple signal acquisition. Each channel is designed to provide continuous monitoring of the connected sensor’s health. It can detect open-circuit conditions (sensor break), short circuits, and signal levels that fall outside predetermined valid ranges. For critical sensors like speed probes (keyphasors) and vibration proximitors, the board provides a stable, clean excitation voltage. This proactive diagnostic capability, inherent to the GE DS200SDCCG1AEC, allows the control system to distinguish between a genuine turbine fault and a failed sensor, preventing unnecessary trips and enabling predictive maintenance by alerting operators to degrading sensor health before a complete failure occurs.

Robust and Deterministic Communication: A key advantage of this board is its management of deterministic serial communication links to essential subsystems. By handling this communication on a dedicated processor, the GE DS200SDCCG1AEC offloads this task from the main controller, ensuring that data exchange is performed reliably and without interruption, regardless of the main CPU’s loading. The use of noise-immune differential serial protocols like RS-485 ensures data integrity over long cable runs within the plant environment. This reliable data pipeline is crucial for the integrated control of the turbine-generator package, ensuring that commands to the excitation system are delivered promptly and that critical machine health data from vibration monitors is received without corruption. The GE DS200SDCCG1AEC provides a level of communication reliability that is essential for coordinated control and protection.

Application Field

The GE DS200SDCCG1AEC is deployed in gas and steam turbine applications utilizing the GE Mark VI control system, specifically functioning as the primary interface for critical machinery protection sensors and dedicated communication networks. Its primary application is interfacing with eddy-current proximity probes used for measuring shaft speed (keyphasor), rotor eccentricity, and radial vibration on turbine and generator bearings. It also conditions signals from accelerometers and other transducers. Furthermore, the GE DS200SDCCG1AEC is often tasked with establishing and maintaining the communication link to the excitation system, ensuring seamless data exchange for voltage regulation and protection functions.

In these roles, the GE DS200SDCCG1AEC is a cornerstone of turbine safety and reliability. The vibration and speed data it processes are used by the controller’s protection logic to initiate emergency trips if dangerous levels are reached. A fault in this board could lead to a loss of these critical signals, potentially forcing a turbine shutdown due to a “loss of protection” scenario, or worse, failing to trip when necessary. The communication link to the excitation system is equally vital; its failure could isolate the controller from the voltage regulator, compromising the unit’s ability to synchronize to the grid or maintain stable voltage control. Therefore, the GE DS200SDCCG1AEC is integral to both operational availability and the fundamental protection of the turbine-generator asset.

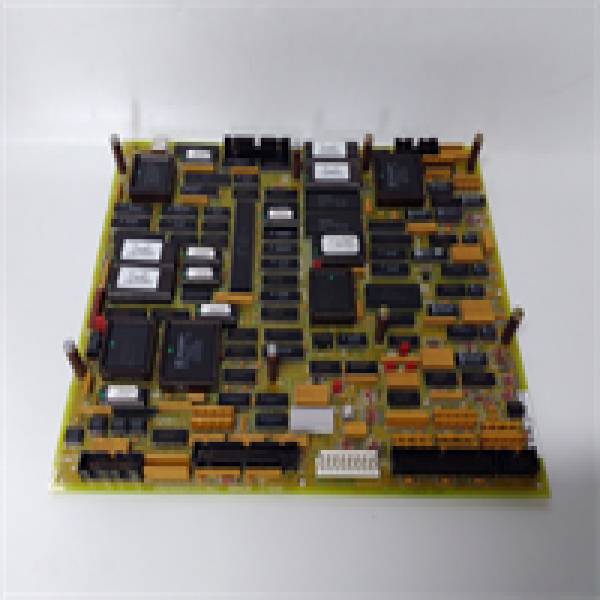

DS200SDCCG1AEC GE

Related Products

DS200SDCCG1A: The base model designation for this sensor and communication board series.

DS200DSPCH1ADA: A DSP Control Board that may process data from the GE DS200SDCCG1AEC.

DS200DCFBG1BJB: The Power Distribution Board that supplies clean power to the GE DS200SDCCG1AEC.

IS200VPROH1A: A dedicated Vibration Processor module, indicating a related function.

DS200TBCAG1A: A Terminal Board used for interfacing sensor wiring.

IC694ACC300: A GE RX3i analog input module, representing a newer generation of I/O.
