Description

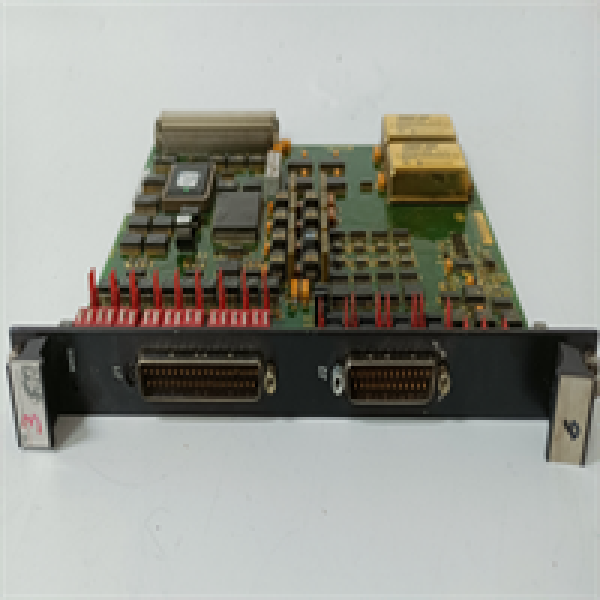

The GE DS200SIOBH1ACA is a high-density Serial Input/Output Buffer Board designed for the Mark VI and Mark VIe series Turbine Control Systems, serving as a critical communication interface within GE’s SPEEDTRONIC™ platform. This essential module functions as a robust buffering and signal conditioning unit, specifically engineered to handle multiple serial communication channels between the main turbine controller and various peripheral devices. The primary role of the GE DS200SIOBH1ACA is to provide electrical isolation, signal amplification, and protocol handling for serial communication links, ensuring reliable data exchange with devices such as HMIs, programming interfaces, legacy systems, and other serial-based equipment in the turbine control environment.

As an integral component of GE’s distributed I/O architecture, the GE DS200SIOBH1ACA enhances system reliability by providing galvanic isolation between the sensitive control electronics and field wiring, protecting against ground loops, voltage transients, and electromagnetic interference. The module incorporates advanced diagnostics that continuously monitor communication health, baud rate synchronization, and data integrity across all active channels. The operational value of the GE DS200SIOBH1ACA is demonstrated through its ability to maintain stable communication links, simplify system integration with legacy equipment, and provide a flexible interface solution that supports various serial protocols, ultimately contributing to enhanced system availability and reduced communication-related downtime.

DS200SIOBH1ACA GE

Technical Specifications

Main Features and Advantages

Advanced Communication Flexibility: The GE DS200SIOBH1ACA offers exceptional configuration flexibility with four independently configurable serial ports that can be set to operate as RS-232, RS-422, or RS-485 interfaces through software configuration. Each channel supports programmable baud rates from 300 bps to 115.2 kbps with automatic baud rate detection capability, making the module compatible with a wide range of legacy and modern serial devices. The GE DS200SIOBH1ACA includes sophisticated protocol handling capabilities that can manage MODBUS RTU, MODBUS ASCII, DNP3.0, and GE’s proprietary SRTP protocols simultaneously across different channels. This flexibility allows the GE DS200SIOBH1ACA to serve as a universal serial communication interface, eliminating the need for multiple specialized communication modules and simplifying system architecture.

Robust Electrical Protection and Diagnostics: The GE DS200SIOBH1ACA incorporates comprehensive electrical protection features that ensure reliable operation in harsh industrial environments. Each communication channel features 1500V RMS galvanic isolation that protects the sensitive control system electronics from voltage transients, ground loops, and electromagnetic interference present on field wiring. The module includes advanced diagnostic capabilities that continuously monitor communication health, detecting and reporting errors such as parity violations, framing errors, and buffer overrun conditions. These diagnostics enable proactive maintenance and troubleshooting, while the robust electrical protection ensures the GE DS200SIOBH1ACA maintains reliable communication links even in electrically noisy environments typical of power generation facilities.

High Availability Design: A key advantage of the GE DS200SIOBH1ACA is its high availability design that ensures continuous operation of critical communication links. The module features independent channel operation where a failure in one channel does not affect the operation of other channels. Each port includes individual status indicators that provide immediate visual feedback on communication activity and error conditions, enabling quick troubleshooting without requiring specialized test equipment. The GE DS200SIOBH1ACA supports hot-swappable replacement in redundant configurations, allowing maintenance to be performed without interrupting turbine operation. This high availability design makes the GE DS200SIOBH1ACA particularly valuable for critical communication links that cannot tolerate extended downtime.

Application Field

The GE DS200SIOBH1ACA finds extensive application in power generation facilities utilizing GE’s Mark VI and Mark VIe control systems for both gas and steam turbines. Its primary deployment is in scenarios requiring reliable serial communication with various peripheral devices and systems. The module is commonly used for interfacing with operator workstations, engineering stations, and historical data servers via RS-232 or RS-422 connections. It also serves as a communication gateway to legacy systems that continue to operate using serial protocols, providing backward compatibility while modernizing the overall control system architecture.

In these critical applications, the GE DS200SIOBH1ACA enables integration with various plant systems including balance of plant controls, environmental monitoring systems, and auxiliary equipment that utilize serial communication protocols. The module is particularly valuable for MODBUS RTU and MODBUS ASCII communications with third-party devices such as flow computers, analyzer systems, and protective relaying equipment. The GE DS200SIOBH1ACA also supports communication with vibration monitoring systems, sequence of events recorders, and other diagnostic equipment that rely on serial data exchange. Its robust electrical isolation and diagnostic capabilities make it essential for maintaining reliable communication links in the electrically noisy environment of power generation facilities, where communication failures can lead to loss of operational visibility and reduced system availability.
