Description

The ABB DSDO115A 3BSE018298R1 is a robust and high-density 16-channel digital output module forming an essential part of the acclaimed ABB S800 I/O family, designed explicitly for integration with AC 800M controllers within the System 800xA Distributed Control System (DCS). This module functions as the critical executive arm of the control system, translating logic commands generated by the controller into physical actions in the field. It provides the necessary switching power to activate a wide array of devices such as solenoid valves, motor contactors, indicator lamps, relays, and alarm horns. The ABB DSDO115A 3BSE018298R1 is engineered to deliver reliable and precise control output in demanding industrial environments, ensuring that automated processes execute as intended.

Positioned as a versatile and general-purpose output solution, this module delivers exceptional value by enabling centralized control over a significant number of actuators from a single slot in the I/O rack, optimizing space and cost-efficiency. The deployment of the ABB DSDO115A 3BSE018298R1 is fundamental to closing the control loop, transforming strategic decisions made by the automation software into tangible operational results on the plant floor. Its design prioritizes seamless interoperability within the ABB 800xA ecosystem, offering proven performance, comprehensive diagnostics, and easy maintenance, which are crucial for maximizing plant uptime and operational efficiency.

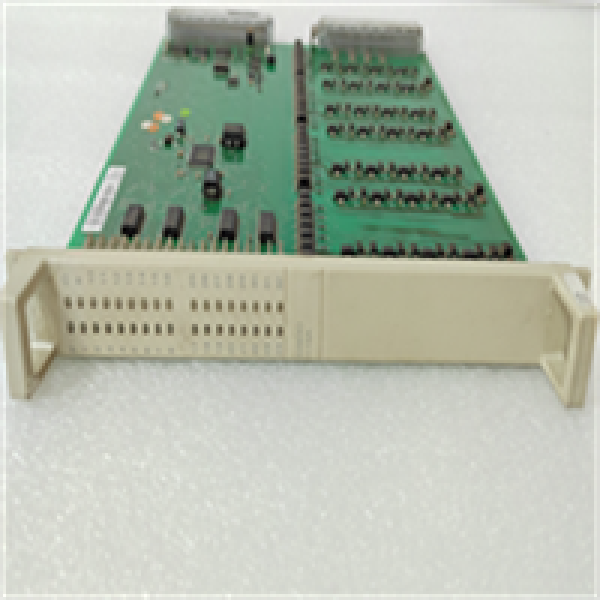

DSDO115A 3BSE018298R1 ABB

Technical Specifications

Main Features and Advantages

The ABB DSDO115A 3BSE018298R1 is distinguished by its robust driving capability and built-in protective features. Each of its 16 channels can deliver up to 0.5A continuous current, sufficient to directly drive most solenoids and small contactors without requiring intermediate relays, thereby simplifying cabinet design and reducing overall system cost. A significant advantage is the inclusion of electronic short-circuit protection on every channel. This feature instantly limits the current in the event of a wiring fault or load failure, safeguarding the module itself from damage and preventing a single channel fault from disrupting the operation of the entire module or other channels, thereby enhancing overall system resilience.

Operational visibility and maintenance are greatly simplified through advanced diagnostics. Each channel is equipped with a bright LED indicator that provides immediate visual confirmation of its output state directly on the module faceplate. Beyond visual diagnostics, the module integrates fully with ABB’s Control Builder M engineering software. This integration allows system engineers to monitor the health of each output channel remotely, identifying issues such as open load or short-circuit conditions, which enables predictive maintenance and drastically reduces mean time to repair. The hot-swappable design of the DSDO115A 3BSE018298R1 ensures that it can be replaced quickly without requiring a shutdown of the entire process, a critical feature for maintaining high availability in continuous production environments.

Application Field

The ABB DSDO115A 3BSE018298R1 finds its application in a vast spectrum of industries where reliable control of DC actuators is required. It is a workhorse in process industries such as chemical processing, oil and gas, and water treatment plants, where it is used to command motorized valves, control chemical dosing pumps, activate agitators, and trigger alarm systems. In these settings, the reliability of the DSDO115A 3BSE018298R1 is crucial for ensuring precise process control and executing safety interlocks.

Furthermore, it is extensively deployed in discrete manufacturing, including automotive assembly lines, packaging machinery, and material handling systems. Here, the module controls the operation of robotic tooling, conveyor belt drives, stamping presses, and sorting gates. Its high channel density makes it ideal for applications with numerous output points, allowing for a compact control cabinet design. Essentially, any application within the ABB System 800xA framework that requires the reliable switching of 24-48VDDC loads for process control, automation sequencing, or alarm annunciation is a perfect fit for this versatile and powerful output module.

DSDO115A 3BSE018298R1 ABB

Related Products

ABB TB851: The standard terminal unit specifically designed for connecting field wiring to the DSDO115A module.

ABB FI820F: A fused terminal unit that provides an additional layer of protection for the digital output channels.

ABB DSDI110A: A 16-channel digital input module, often used alongside the DSDO115A to form complete control loops.

ABB SDO120A: A 32-channel digital output module for applications requiring even higher output density.

ABB PM865: A high-performance AC 800M controller that typically commands S800 I/O modules like the DSDO115A.

ABB Control Builder M: The essential engineering software used to configure, commission, and diagnose the module.
