The ABB DSSB140 48980001-P is a highly specialized and robust safety bus communication module designed for integration within ABB’s Safety PLC systems, particularly as part of the AC 800M High Integrity framework. This critical safety component serves as a communication interface module that enables reliable data exchange between safety controllers and distributed safety devices across dedicated safety networks. The primary function of the ABB DSSB140 48980001-P is to facilitate secure and deterministic communication between the safety processor and remote I/O stations, safety instruments, and other safety-related devices while maintaining the stringent integrity requirements mandated by international safety standards. Its design incorporates redundant communication channels, advanced error detection mechanisms, and fault-tolerant architecture that ensure continuous operation even in the presence of hardware failures or communication errors, making it an essential element in safety instrumented systems (SIS) where failure could result in hazardous situations.

As a vital component in safety automation architectures, the DSSB140 module delivers exceptional value by enabling distributed safety systems that enhance both safety performance and operational efficiency. It allows for the placement of safety I/O points closer to field devices in hazardous areas while maintaining the required safety integrity level (SIL) through secure communication protocols. The deployment of the ABB DSSB140 48980001-P is particularly crucial in process industries where safety systems must cover large physical areas, as it significantly reduces wiring complexity and installation costs while improving system reliability and maintainability. Its certified design complies with relevant safety standards including IEC 61508 and IEC 61511, ensuring that safety functions maintain their integrity from sensor through to final element, providing plant operators with confidence in their safety systems’ performance.

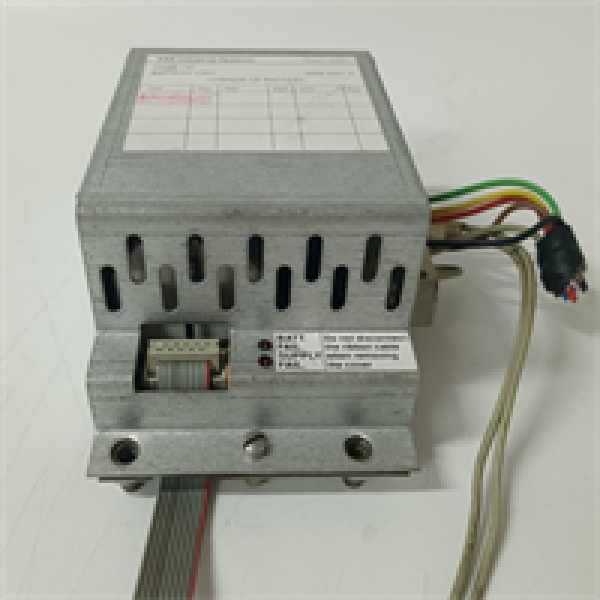

DSSB140 48980001-P ABB

Technical Specifications

Main Features and Advantages

The ABB DSSB140 48980001-P offers significant advantages through its safety-focused design and robust communication capabilities. A primary feature is its redundant communication architecture that employs parallel communication channels with continuous cross-comparison and validation, ensuring that any single-point failure does not compromise the safety communication. The module incorporates advanced safety protocols with time-stamped messaging, sequence numbering, and cryptographic checksums that prevent unauthorized access, message manipulation, or data corruption. These features ensure that safety messages are delivered intact and in the correct sequence, maintaining the integrity of safety functions even in electrically noisy industrial environments where electromagnetic interference could affect conventional communication systems.

The module’s comprehensive diagnostic capabilities represent a critical advantage for maintaining safety system reliability. It continuously monitors all aspects of the communication system, including cable integrity, connection status, signal quality, and module health, providing immediate detection and reporting of any anomalies. The DSSB140 features built-in self-test routines that run continuously during operation, verifying the functionality of internal processors, memory, and communication interfaces. This high level of diagnostic coverage (>99%) ensures that dangerous failures are detected before they can compromise safety functions, significantly reducing the probability of failure on demand. The module’s seamless integration with ABB’s Safety Builder engineering environment simplifies configuration, testing, and documentation of safety systems, reducing engineering time and ensuring compliance with safety lifecycle requirements.

Application Field

The ABB DSSB140 48980001-P is specifically designed for safety-critical applications across various high-hazard industries where reliable safety communication is mandatory. In the oil and gas sector, it is extensively deployed in emergency shutdown (ESD) systems, fire and gas detection systems, and process shutdown systems on offshore platforms, refineries, and pipeline operations. The module’s robust communication capabilities enable the implementation of distributed safety systems that cover large geographical areas while maintaining the required safety integrity levels. In these applications, the DSSB140 ensures that safety commands are reliably transmitted to final elements such as emergency valves and shutdown devices, preventing catastrophic incidents and protecting personnel, equipment, and the environment.

In chemical and petrochemical plants, the module is used in safety instrumented systems that monitor and control critical process parameters, including high-pressure protection, temperature override systems, and reaction runaway prevention. The DSSB140‘s certified safety performance makes it suitable for these applications where system failure could result in serious consequences. In power generation facilities, particularly in nuclear and fossil fuel plants, the module provides the communication backbone for safety systems that protect turbines, boilers, and other critical equipment. Essentially, any application within the ABB Safety PLC environment that requires reliable communication between safety controllers and distributed safety devices benefits from the certified safety performance and robust design of this specialized communication module.

Safety Bus System Architecture

System configuration and redundancy design: The DSSB140 48980001-P module adopts a comprehensive redundancy architecture to ensure communication security. The system is usually configured as a dual channel redundant safety bus, with both buses running simultaneously and monitoring each other to achieve fault safe operation. Each safety segment can connect up to 32 safety devices, including remote I/O stations, safety instruments, and shut-off valves. The bus topology supports linear, star, or hybrid structures, with a maximum distance of up to 1000 meters (expandable with repeaters). The module adopts a proprietary secure communication protocol, including multiple protection mechanisms such as timestamp, serial number check, and CRC check, to ensure the integrity and determinacy of data transmission. The system supports hot standby redundancy, and in the event of a main module failure, the backup module can take over without disturbance within milliseconds, ensuring uninterrupted safety functions.

Diagnostic and maintenance functions: This module integrates advanced diagnostic systems to continuously monitor bus load, communication error rate, signal quality, and equipment status. Each transmission frame contains diagnostic information, providing real-time system health status. The module supports online diagnosis and predictive maintenance, and can detect potential faults and alert in advance. System maintenance includes regular checks of bus terminal resistance, cable shielding, and connection integrity to ensure communication quality. All security incidents and diagnostic information are recorded in the security controller for security auditing and performance analysis. The module supports firmware online upgrade function, which can perform software updates without stopping the machine, greatly improving the availability and maintainability of the system.
