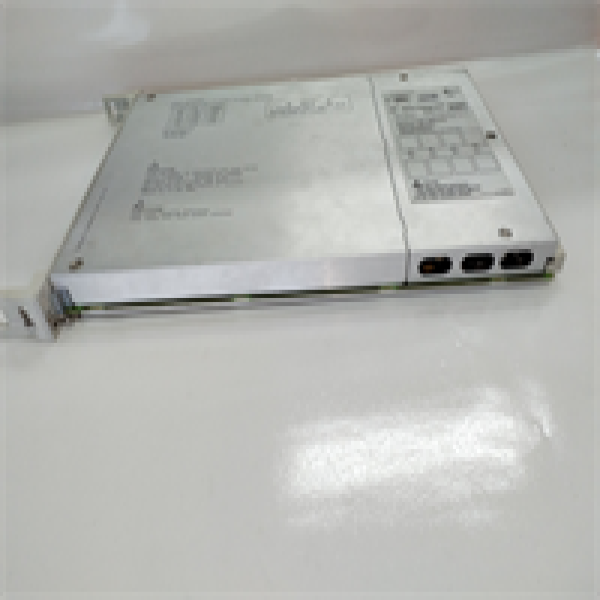

Agilent AGILENT E1413C VXI Module – Suitable for multi industry testing needs, widely used!

The Agilent E1433A is a high-accuracy, 5½-digit digital multimeter (DMM) designed for VXIbus-based automatic test systems. It was engineered for integration into modular test racks used in manufacturing test, aerospace, defense, and R&D environments. As a VXI Plug & Play compliant instrument, the E1433A provides fast, reliable measurements of voltage, current, resistance, frequency, and continuity, making it ideal for automated test equipment (ATE) applications.

Get a Quote
Manufacturer:
Our extensive catalogue, is available now for dispatch to the worldwide.
  • Email: sales@slxytech.com
  • WhatsApp / Wechat：8617062388866
  • Phone：+86 17062388866

Description

The Agilent E1433A is a high-accuracy, 5½-digit digital multimeter (DMM) designed for VXIbus-based automatic test systems. It was engineered for integration into modular test racks used in manufacturing test, aerospace, defense, and R&D environments. As a VXI Plug & Play compliant instrument, the E1433A provides fast, reliable measurements of voltage, current, resistance, frequency, and continuity, making it ideal for automated test equipment (ATE) applications.

Housed in a C-size VXI module (Model E1433A), it fits into VXI mainframes such as the Agilent E1406A, E1407A, or E1429A. The E1433A delivers laboratory-grade performance in a compact, programmable format, supporting SCPI (Standard Commands for Programmable Instruments) over the VXIbus for easy integration with test software environments like Agilent VEE, LabVIEW, and MATLAB.

E1413C AGILENT

E1413C AGILENT

Key Features

  • Measurement Functions:
  • DC Voltage (up to 300 V)
  • AC Voltage (True RMS)
  • DC/AC Current
  • 2-wire and 4-wire Resistance
  • Frequency and Period
  • Continuity (with audible beep)
    • Resolution: Up to 5½ digits
    • Measurement Speed: Up to 10,000 readings per second (in burst mode)
    • Accuracy: High precision with low noise and excellent long-term stability
    • Input Protection: Overvoltage and overcurrent protection on all ranges
    • Triggering: Software, external, or bus-triggered measurements
    • Calibration: Front-panel self-calibration and diagnostic routines
    • Programming Interface: VXIbus (SCPI-compliant), compatible with VXIplug&play drivers
    • Display: LED status indicators on front panel; readouts via host software

Technical Specifications (Summary)

Parameter Specification
Model E1433A
Manufacturer Agilent Technologies (now Keysight Technologies)
Form Factor C-size VXI (VXI Rev 1.4)
Mainframe Compatibility E1406A, E1407A, E1429A, or any VXI mainframe with +6.3V supply
Measurement Type Digital Multimeter (DMM)
Digits 5½
DC Voltage Range 100 mV, 1 V, 10 V, 100 V, 300 V
AC Voltage Range 100 mV to 300 V (True RMS)
DC Current Range 1 mA, 10 mA, 100 mA, 1 A, 3 A
Resistance Range 100 Ω to 10 MΩ (2-wire and 4-wire)
Frequency Range 3 Hz to 300 kHz
Power Supply +15 V, –15 V, +5 V, +6.3 V from VXI backplane
Operating Temp 0°C to 55°C
Compliance VXIbus Rev 1.4, VXIplug&play, SCPI 1999

Application Field

The Agilent E1433A was widely used in:

  • Automated production test systems
  • Aerospace and defense electronics testing
  • High-speed functional testing
  • Research and development labs
  • Calibration and verification systems

Its modular design allowed integration with other VXI instruments (e.g., digitizers, switches, function generators) for complete system solutions.

E1413C AGILENT

E1413C AGILENT

Related Products

  • Agilent E1412A: VXI DMM (6½-digit, higher accuracy)
  • Agilent E1426A: VXI Switch Controller
  • Agilent E1432A: 4½-digit DMM (lower cost alternative)
  • Agilent E1406A: VXI Mainframe (6-slot)
  • Keysight VEE Pro: Test automation software for programming E1433A
  • NI LabVIEW with VXI Plug & Play Drivers: For PC-based control
